General Information:
Manufacturer : hewlett packard
Manufacturer part number : 539797-B21

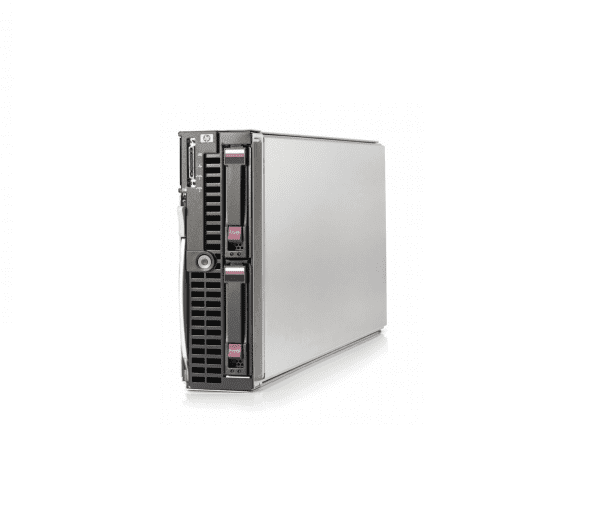

Product name : proliant bl465c g6 server
Blade Server
Processor & chipset :
Processor type : amd opteron 2425 / 2.1 GHz
Multi-core technology : 6-core
Installed qty : 1
Max supported qty : 2
Upgradability : upgradable
64-bit computing : yes
Chipset : serverworks ht-1000 and ht-2100
Cache memory :
Cache memory type : l3 cache
Installed size : 6 mb
Cache per processor : 6 mb
Ram :
Installed size : 4 gb
Max supported size : 64 gb
Ram technology : ddr2 sdram
Memory speed : 800 mhz
Memory specification compliance : pc2-6400
Form factor : dimm 240-pin
8 DDR2 Slots
Features : registered
Configuration features : 2 x 2 gb
Storage & storage controller :
Hard drive : none.
Optical drive : none.
Storage controller type : 1 x serial attached scsi – integrated – pci express x4
Controller interface type : Sata-150 / sas
Storage controller name : smart array e200i
Raid level : raid 0, raid 1
Buffer size : 64 mb
Display & graphics controller :
Graphics controller type : integrated
Graphics processor : ati rn50
Video memory : 32 mb ddr sdram
Networking :
Networking : network adapter – integrated
Ethernet ports : 2 x gigabit ethernet
Ethernet controller : 2 x hp nc370i
Data link protocol : ethernet, fast ethernet, gigabit ethernet
Remote management controller : integrated lights-out 2
Features : dhcp support
Compliant standards : ieee 802.3, ieee 802.3u, ieee 802.1q, ieee 802.3ab, ieee 802.3x, ieee 802.3ad (lacp), ieee 802.3p
Expansion/connectivity :
Expansion bays total (free):
2 ( 2 ) x hot-swap – 2.5 in sff (2 Bays)
Expansion slots total (free):
8 ( 6 ) x memory – dimm 240-pin
2 ( 1 ) x processor.
Interfaces :
2 x network – ethernet 10base-t/100base-tx/1000base-t – rj-45
1 x management – hp ilo – rj-45
1 x display / video – 15 pin hd d-sub (hd-15)
