GENERAL INFORMATION :
Manufacturer : Hewlett-Packard
Manufacturer Part Number : 539843-001

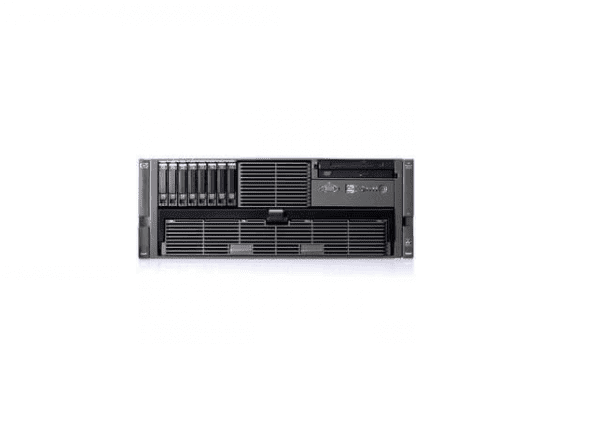

Product Name : Proliant Dl585 G6 4u Rack Mount
PROCESSOR & CHIPSET :
Processor Type : Amd Opteron 8431 / 2.4 Ghz
Multi-Core Technology : 6 Core
64-Bit Computing : Yes
Installed Qty : 4
Max Supported Qty 4
Chipset : Nvidia Nforce Professional 2200/2050 / Amd 8132
Bus Speed : 1000 Mhz
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 24 Mb
Cache Per Processor : 6 Mb
RAM :
Installed Size 16 Gb
Max Supported Size : 256 Gb
Technology : Ddr2 Sdram – Advanced Ecc
Memory Speed : 800 Mhz
Memory Specification Compliance : Pc2-6400
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 8 X 2 Gb
STORAGE & STORAGE :
Hard Drive : None
Maximum Internal Storage Support : 2.40 Tb Hot-Swappable Sas
Optical Drive : Combo Drive – Cd-Rw/Dvd-Rom (Atapi)
Storage Controller Type(1st) : 1 X Raid – Plug-In Card – Pci Express 2.0 X8
Controller Interface Type : Serial SAta-300 / Sas 2.0
Storage Controller Name : Smart Array P410
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size : 512 Mb
Storage Controller Type(2nd) : 1 X Ide – Integrated
DISPLAY & GRAPHICS :
Graphics Controller Type : Integrated
Graphics Processor : Ati Es1000
Video Memory : 32 Mb Ddr Sdram
NETWORKING :
Networking : Network Adapter – Integrated
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : 2 X Hp Nc371i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2
Features : Wake On Lan (Wol), Dhcp Support, Acpi Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
