General Information:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 570102-001

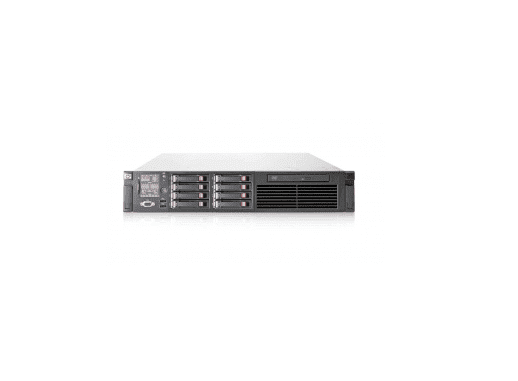

Product Name: Proliant Dl385 G6 2u Rack Mount Server
Processor & Chipset:
Processor Type: Amd Opteron 2435 / 2.6 Ghz
Multi-Core Technology: 6-Core (Hexa-Core)
64-Bit Computing: Yes
Installed Qty: 2
Max Supported Qty: 2
Mainboard Chipset Type: Serverworks Ht1000 / Ht2100
Cache Memory:
Cache Memory Type: L3 Cache
Installed Size: 12 Mb
Cache Per Processor: 6 Mb
Memory:
Installed Ram Size: 16 Gb / 128 Gb (Max)
Technology: Ddr2 Sdram – Advanced Ecc
Memory Specification Compliance: Pc2-6400
Form Factor: Dimm 240-Pin
8 DDR2 Slots
Configuration Features: 4 X 4 Gb
Storage & Storage Controller:
Hard Drive: None.
Optical Storage: Slim Sata Dvd-Rw
Storage Controller Type: 1 X Raid – Plug-In Card – Pci Express X8
Controller Interface Type: Serial Ata-150 / Sas
Storage Controller Name: Smart Array P410 With 512mb Bbwc
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size: 512 Mb
Display & Graphics Controller:
Graphics Controller Type: Integrated
Graphics Processor: Ati Es1000
Video Memory: 32 Mb
Networking:
Networking: Network Adapter – Integrated
Ethernet Ports: 4 X Gigabit Ethernet
Ethernet Controller(S): 2 X Hp Nc382i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 2 Standard
Features: Wake On Lan (Wol), Dhcp Support, Acpi Support
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion & Connectivity:
Expansion Bays Total (Free):
8 ( 8 ) X Hot-Swap – 2.5inch Sff (8 Bays)
1 ( 0 ) X Front Accessible – 5.25inch
Expansion Slots Total (Free):
1 ( 1 ) X Pci Express X16 ( X8 Mode )
2 ( 1 ) X Pci Express X8 ( X4 Mode )
2 ( 0 ) X Processor
8 ( 4 ) X Memory – Dimm 240-Pin
Interfaces:
1 X Serial – Rs-232 – 9 Pin D-Sub (Db-9)
1 X Keyboard – Generic – 6 Pin Mini-Din (Ps/2 Style)
1 X Mouse – Generic – 6 Pin Mini-Din (Ps/2 Style)
2 X Display / Video – Vga – 15 Pin Hd D-Sub (Hd-15) ( 1 In Front )
4 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
1 X Management – Hp Ilo – Rj-45
4 X Hi-Speed Usb – 4 Pin Usb Type A ( 2 Front, 2 Rear )
Power Device:
Power Device Type: Power Supply – Hot-Plug
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 750 Watt
