GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 570775-B21

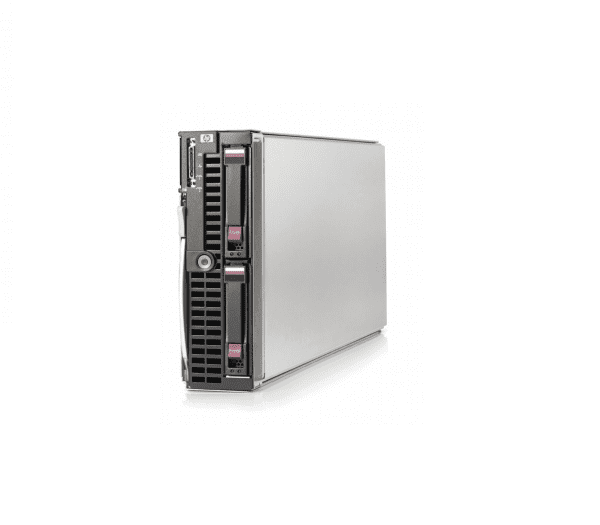

Product Name : Proliant Bl460c G6 Blade Server
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5540 / 2.53GHz
Multi-Core Technology : Quad-Core (4 core)
64-Bit Computing : Yes
Installed Qty : 2
Max Supported Qty : 2
Upgradability : Upgradable
Processor Main Features : Hyper Threading Technology.
Chipset Type : Intel 5500
ata Bus Speed : 1066 Mhz
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 16 Mb
Cache Per Processor : 8 Mb
RAM :
Installed Size : 6 Gb
Max Supported Size : 192 Gb
Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 3 X 2 Gb
STORAGE & STORAGE CONTROLLER :
Hard Drive : 2 X 146 Gb – Hot Swap – Serial Attached Scsi
Storage Controller Type : 1 X Raid – Plug-In Card – Pci Express X4
Controller Interface Type : Serial SAta-150 / Sas
Storage Controller Name : Smart Array P410i
Raid Level : Raid 0, Raid 1
Buffer Size : 256 Mb
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated
Graphics Processor : Ati Rn50
Video Memory : 32 Mb Ddr Sdram
NETWORKING :
Networking : Network Adapter – Pci Express X4 – Integrated
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Hp Nc532i
Data Link Protocol : Ethernet,Fast Ethernet,Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2
Features : Wake On Lan (Wol)
Compliant Standards :
Ieee 802.3u, Ieee 802.3z, Ieee 802.1q, Ieee 802.1p,
Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.3ae, Ieee 802.3ap
EXPANSION & CONNECTIVITY :
Expansion Bays Total (Free):
2 ( 0 ) X Hot-Swap – 2.5 In Sff
Expansion Slots Total (Free):
2 ( 0 ) X Processor
12 ( 9 ) X Memory – Dimm 240-Pin.
2 ( 1 ) X Expansion Slot ( X8 Mode )
