GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 574409-B21

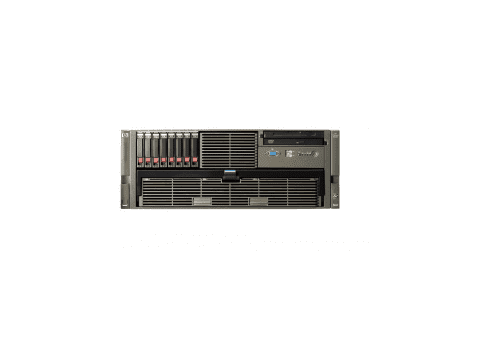

Product Name : Proliant Dl585 G6 4u Cto Server Chassis
PROCESSOR & CHIPSET :
Processor Type : Amd Opteron Processor
Installed Qty : 0
Max Supported Processor : 4
Upgradability : Upgradable
Chipset Type : Nvidia Nforce Professional 2200/2050 / Amd 8132
RAM :
Installed Size : 0 Gb
Max Supported Size : 256 Gb
Ram Technology : Ddr2 Sdram
Form Factor : Dimm 240-Pin
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Optical Drive : None
Storage Controller Type : 1 X Ide – Integrated
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated
Graphics Processor : Ati Rn-50 1600x1280x64k 16m Color
Video Memory : 32 Mb Ddr1 Sdram
NETWORKING :
Networking : Network Adapter – Pci Express X4 – Integrated
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : 2 X Hp Nc382i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Wake On Lan (Wol), Acpi Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
EXPANSION & CONNECTIVITY :
Expansion Bays Total (Free) :
2 (Total) / 2 (Free) X Front Accessible – 5.25in Slim Line
8 (Total) / 8 (Free) X Hot-Swap – 2.5in Sff
EXPANSION SLOTS TOTAL (FREE) :
32 (Total) / 32 (Free) X Memory – Dimm 240-Pin
4 (Total) / 4 (Free) X Processor
2 (Total) / 2 (Free) X Pci-X / 100 Mhz
3 (Total) / 3 (Free) X Pci Express X16 ( X8 Mode )
4 (Total) / 4 (Free) X Pci Express X8 ( X4 Mode )
INTERFACES :
1 X Serial – Rs-232 – 9 Pin D-Sub (Db-9)
1 X Keyboard – Generic – 6 Pin Mini-Din (Ps/2 Style)
1 X Mouse – Generic – 6 Pin Mini-Din (Ps/2 Style)
2 X Display / Video – Vga – 15 Pin Hd D-Sub (Hd-15) ( 1 In Front )
2 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
1 X Management – Hp Ilo – Rj-45
4 X Hi-Speed Usb – 4 Pin Usb Type A ( 2 Front, 2 Rear )
POWER SUPPLY :
Device Type : Power Supply – Hot Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
