GENERAL INFORMATION :
Manufacturer : Hewlett-Packard
Manufacturer Part Number : 577143-001

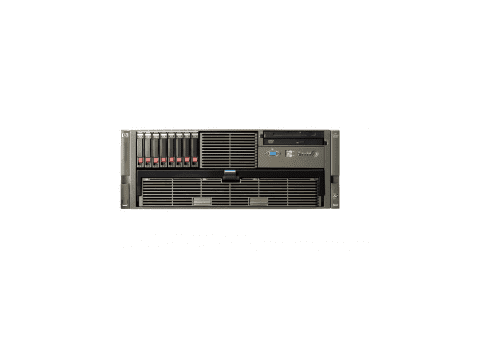

Product Name : Proliant Dl585 G6 4u Rack Mount
PROCESSOR & CHIPSET :
CPU : Amd Opteron 8439 Se / 2.8 Ghz
Number Of Cores : 6-Core
64-Bit Computing : Yes
Cpu Qty : 4
Max Cpu Qty : 4
Chipset Type : Nvidia Nforce Professional 2200/2050 / Amd 8132
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 24 Mb
Cache Per Processor : 6 Mb
RAM :
Installed Size : 16 Gb
Max Supported Size : 256 Gb
Technology : Ddr2 Sdram – Advanced Ecc
Memory Speed : 800 Mhz
Memory Specification Compliance : Pc2-6400
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 8 X 2 Gb
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Storage Controller Type : 1 X Raid – Plug-In Card – Pci Express X8
Controller InterfaceType : Sata 1.5gb/S / Sas
Storage Controller Name : Smart Array P41
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size : 512 Mb
Storage Controller (2nd) Type : 1 X Ide – Integrated
DISPLAY & GRAPHICS :
Graphics Controller Type : Integrated
Graphics Processor : Ati Rn-50
Video Memory : 32 Mb
NETWORK & COMMUNICATION :
Networking : Network Adapter – Integrated
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : 2 X Hp Nc371
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2
Features : Wake On Lan (Wol), Dhcp Support, Acpi Support.
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
POWER DESCRIPTION :
Power Device Type : Power Supply – Hot Plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz
