GENERAL INFORMATION:
Manufacturer : Hewlett Packard
Manufacturer Part Number : 579237-B21

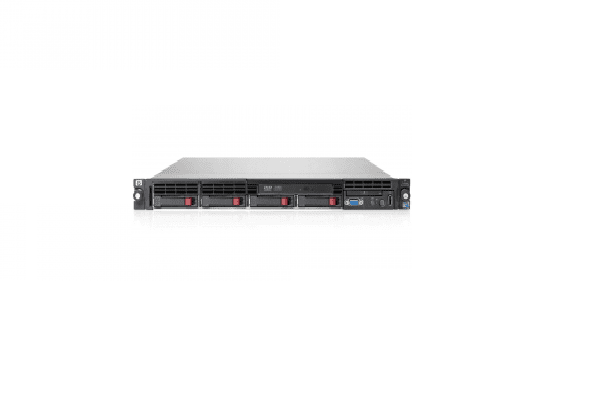

Product Name : Proliant Dl360 G7 1u Cto Chassis Server
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon Processor.
Installed Qty : 0
Supported Processor :
Xeon:
X5670(2.93 GHz), X5660(2.80 GHz), X5650(2.66 GHz), L5640(2.26 GHz)
E5640(2.66 Ghz),E5630(2.53 Ghz),E5620(2.40 Ghz),E5506(2.13 Ghz) L5630(2.13ghz)
E5503 (2.00 Ghz)
Chipset Type : Intel 5520
RAM :
Installed Size : 0 GB
Max Supported Size : 192 GB
Ram Technology : Ddr3 Sdram – Advanced Ecc
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600r
STORAGE & STORAGE CONTROLLER :
Hard Drive : None.
Optical Drive : None.
Internal Storage : 4 Sff Sas/Sata Hdd Bays (With Optional 4sff Hdd Upgrade).
Storage Controller Type : Hp Integrated Lights-Out 3 (Ilo 3) Embedded
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated
Graphics Processor: Ati Es1000
Max Allocated Ram Size : 32 Mb
Supported Resolution :
16 Bit Color: Maximum Resolution Of 1600 X 1200
32 Bit Color: Maximum Resolution Of 1280 X 1024
NETWORKING :
Networking: Network Adapter – Pci Express X4 – Integrated
Ethernet Ports: 4 X Gigabit Ethernet
Ethernet Controller: 2 X Hp Nc382i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 3
Features: Wake On Lan (Wol), Acpi Support, Pxe Support
Compliant Standards:
IEEE 802.3, IEEE 802.3U, IEEE 802.1Q
IEEE 802.3AB, IEEE 802.1P, IEEE 802.3AD (LACP)
