GENERAL INFORMATION :
Manufacturer : Hewlett Packard.
Manufacturer Part Number : 583108-001

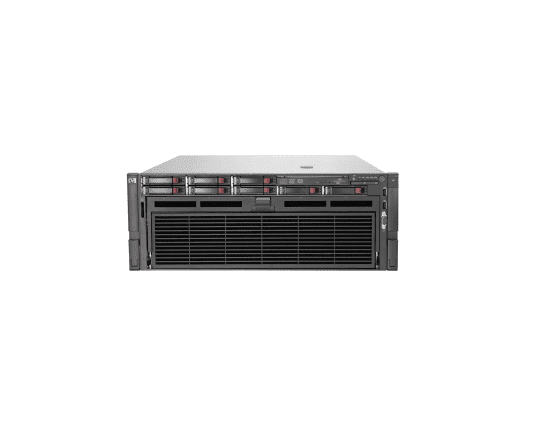

Product Name : Proliant Dl585 G7 Server.
PROCESSOR & CHIPSET :
Processor Type : Amd Opteron 6172 Processor(12 Cores, 2.10 Ghz, 12m, 80w Acp)
Installed Qty : 4
Max Supported Qty : 4
64-Bit Processing : Yes
Processor Core : Twelve-Core (12 core)
Chipset Type : Amd Sr5690/Sp5100
Bus Speed : 6400 Mhz
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 48 Mb
Cache Per Processor : 12 Mb
RAM :
Installed Size : 32 Gb
Max Supported Size : 512 Gb
Technology : Ddr3 Sdram, Advanced Ecc
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered.
STORAGE & STORAGE CONTROLLERS :
Hard Drive : None.
Optical Drive : Hp Slim Sata Dvd Optical Drive.
Internal Storage : Up To 4tb Of Internal Storage.
Storage Controller Type : 1 X Raid, Plug-In Card, Pci Express X8
Controller Interface Type : Serial Attached Scsi 2
Storage Controller Name : Smart Array P410i With 1gb Fbwc
Raid Level : Raid 0, Raid 1, Raid 10
Buffer Size : 1 Gb
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated.
Graphics Processor : Ati Rn50
Video Memory : 32 Mb
1600x1280x64k 16m Color
NETWORKING :
Networking : Network Adapter, Pci Express X4, Integrated.
Ethernet Ports : 4 X Gigabit Ethernet.
Ethernet Controller : Hp Nc375i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet.
Remote Management Controller : Integrated Lights-Out 3
Features : Wake On Lan (Wol), Acpi Support, Pxe Support.
Compliant Standards :
Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab
Ieee 802.1p, Ieee 802.3ad (Lacp)
POWER DEVICE :
Power Device Type : Power Supply, Hot Plug
Power Redundancy : Yes
Max Supported Qty : 4
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 1200 Watt
