GENERAL INFORMATION:
Manufacturer : Hewlett Packar
Manufacturer Part Number : 583914-B21

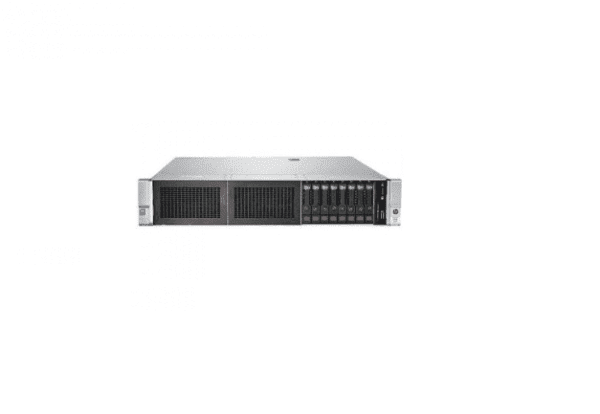

Product Name : Proliant Dl380 G7 2u Small Cto Chassis Server
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon Processor.
Installed Qty : 0
Supported Processor :
XEON:
X5680(3.33ghz),X5660(2.80ghz),X5650(2.66ghz),L5630(2.13ghz),X5670(2.93ghz)
X5677(3.46ghz),E5640(2.66ghz),E5630(2.53ghz),E5620(2.40ghz),L5630(2.13ghz)
E5506(2.13 Ghz)
E5503 (2.00 Ghz)
Chipset Type : Intel 5520 SAS
RAM :
Installed Size : 0 Gb
Ram Technology : Ddr3 Sdram
Sata
Memory Speed : 1333 Mhz.
Memory Specification Compliance : Pc3-10600
STORAGE & STORAGE CONTROLLER :
Hard Drive : None.
Optical Drive : None.
Storage Controller Type : Smart Array P410i Controller.
DISPLAY & GRAPHICS CONTROLLE
:
Graphics Controller Type : Integrated
Graphics Processor: Ati Es1000
Max Allocated Ram Size : 64 Mb
Supported Resolution :
16 Bit Color: Maximum Resolution Of 1600 X 1200
32 Bit Color: Maximum Resolution Of 1280 X 1024
NETWORKING :
Networking: Network Adapter – Pci Express X4 – Integrated
Ethernet Ports: 4 X Gigabit Ethernet
Ethernet Controller: 2 X Hp Nc382i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 3
Features: Wake On Lan (Wol), Acpi Support
COMPLIANT STANDARDS:
IEEE 802.3, IEEE 802.3U, IEEE 802.1Q
IEEE 802.3AB, IEEE 802.1P, IEEE 802.3AD
