GENERAL INFORMATION:
Manufacturer : Hewlett Packard
Manufacturer Part Number : 584084-001

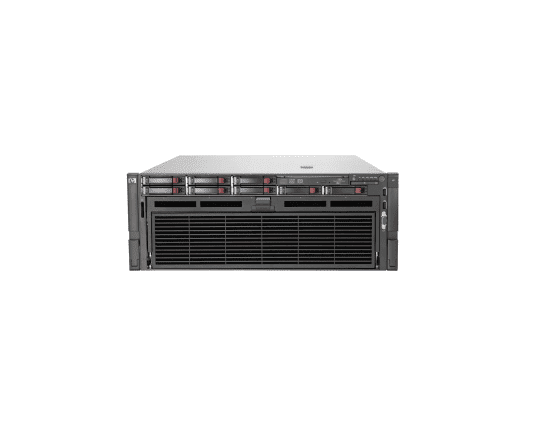

Product Name : Proliant Dl580 G7 4u Rack Mount .
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon Processor X7560 (2.26ghz, 24mb Cache, 130w)
Multi-Core Technology : Eight-Core ( 8 core)
Installed Qty : 4
Max Supported Qty : 4
64-Bit Computing : Yes.
Hyper-Threading: Yes.
Chipset Type : Intel E7500
CACHE MEMORY :
Cache Memory Type : L3 Cache.
Installed Size : 96 Mb
Cache Per Processor : 24 Mb.
RAM :
Installed Size : 64 Gb
Max Supported Size : 1 Tb
Ram Technology : Ddr3 Sdram ,Advanced Ecc
Memory Speed : 1333 Mhz.
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin.
Features : Registered, Memory Mirroring, Online Spare Memory.
Configuration Features : 16 X 4 Gb
STORAGE & STORAGE CONTROLLER :
Hard Drive : None.
Optical Drive : Hp Slim Sata Dvd Rom Optical Drive.
Internal Storage : Up To 4tb Of Internal Storage.
Storage Controller Type : 1 X Raid, Plug-In Card, Pci Express X8
Controller Interface Type : Serial Attached Scsi 2
Storage Controller Name : Smart Array P410i With 1gb Fbwc
Raid Level : Raid 0, Raid 1, RAID 5, RAID 6, RAID 1+0, RAID 5+0, RAID 6+0
Buffer Size : 1 Gb
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated
Graphics Processor: Ati Es1000
Max Allocated Ram Size : 64 Mb Sdram
Max Resolution : 1280 X 1024 X 16m Color.
NETWORKING :
Networking : Network Adapter, Pci Express X4, Integrated
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Hp Nc375i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 3
Features : Wake On Lan (Wol), Acpi Support
