GENERAL INFORMATION:
Manufacturer : Hewlett Packard
Manufacturer Part Number : 584087-001

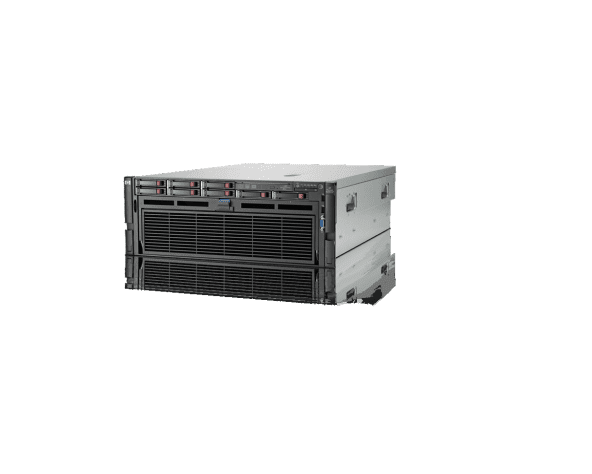

Product Name : Proliant Dl580 G7 4u Rack Mount .
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E7530 (1.86ghz, 12mb Cache, 105w)
Multi-Core Technology : Six-Core (6 core)
Installed Qty : 2
Max Supported Qty : 4
64-Bit Computing : Yes.
Chipset Type : Intel E7500
CACHE MEMORY :
Cache Memory Type : L3 Cache.
Installed Size : 24 Mb
Cache Per Processor : 12 Mb.
RAM :
Installed Size : 16 Gb
Max Supported Size : 512 Gb
Ram Technology : Ddr3 Sdram ,Advanced Ecc
Memory Speed : 1333 Mhz.
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin.
Features : Registered, Memory Mirroring, Online Spare Memory.
Configuration Features : 4 X 4 Gb
STORAGE & STORAGE CONTROLLER :
Hard Drive : None.
Optical Drive : Hp Slim Sata Dvd Rom Optical Drive.
Internal Storage : Up To 4tb Of Internal Storage.
Storage Controller Type : 1 X Raid, Plug-In Card, Pci Express X8
Controller Interface Type : Serial Attached Scsi 2
Storage Controller Name : Smart Array P410i With 1gb Fbwc
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 1+0, Raid 5+0, Raid 6+0
Buffer Size : 512 Mb
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated.
Graphics Processor : Ati Es1000
Max Allocated Ram Size : 64 Mb Sdram.
Max Resolution : 1280 X 1024 X 16m Color.
NETWORKING :
Networking : Network Adapter, Pci Express X4, Integrated.
Ethernet Ports : 4 X Gigabit Ethernet.
Ethernet Controller : Hp Nc375i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet.
Remote Management Controller : Integrated Lights-Out 3
Features : Wake On Lan (Wol), Acpi Support.
Compliant Standards :
Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab
Ieee 802.1p, Ieee 802.3ad (Lacp)
POWER DEVICE :
Power Device Type : Power Supply, Hot Plug
Power Redundancy : Yes
Installed Qty : 4
Max Supported Qty : 4
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 1200 Watt.
