GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 585335-001

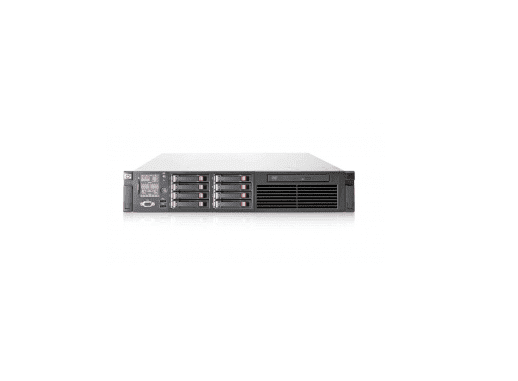

Product Name : Proliant Dl385 G7 2u Rack Mount
PROCESSOR & CHIPSET :
Processor Type : Amd Opteron 6136 (2.4 Ghz, 80
Multi-Core Technology : 8 Core
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable.
Chipset Type : Amd Sr5690/Sp5100
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 12 Mb
Cache Per Processor : 12 Mb
RAM :
Installed Size : 8 Gb
Max Supported Size : 256 Gb
Technology : Ddr3 Sdram -Advanced Ecc .
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered.
Configuration Features : 4 X 2 Gb
Ram Supported : Pc3-10600 – 256 Gb – Registered Pc3-10600 – 64 Gb – Unbuffered
STORAGE & STORAGE CONTROLLER :
Hard Drive : None.
Optical Drive : None.
Storage Controller Type : 1 X Raid – Plug-In Card – Pci Express X8
Controller Interface Type : Serial SAta-300 / Sas 2.0
Storage Controller Name : Smart Array P410i
Raid Level : Raid 0, Raid 1, Raid 5, Raid 1+0, Raid 5+0
Buffer Size : 256 Mb
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated.
Graphics Processor : Ati Es1000
16 Bit Color: Maximum Resolution Of 1600 X 1200
32 Bit Color: Maximum Resolution Of 1280 X 1024
NETWORKING :
Networking : Network Adapter – Pci Express X4 – Integrated.
Ethernet Ports : 4 X Gigabit Ethernet.
Ethernet Controller : 2 X Hp Nc382i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 3
Features : Wake On Lan (Wol), Acpi Support, Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
