GENERAL INFORMATION:
Manufacturer: Hewlett Packard.
Manufacturer Part Number: 589045-B21

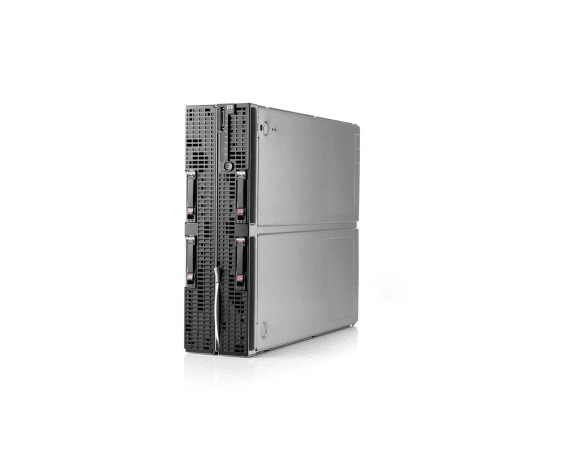

Product Name: Proliant Bl680c G7 – Blade Server.
PROCESSOR & CHIPSET:
Processor Type : Intel Xeon X7550/ 2.0ghz
Multi-Core Technology : 8 Core (Octa-Core)
64-Bit Computing : Yes
Installed Qty: 2
Max Supported Qty: 4
Upgradability: Upgradable.
Chipset Type : Intel 7500
CACHE MEMORY:
Cache Memory Type : L3 Cache.
Installed Size : 36 Mb.
Cache Per Processor : 18 Mb.
MEMORY:
Installed Size : 16 Gb
Max Supported Size : 1 Tb
Technology: Ddr3 Sdram
Form Factor: Dimm 240-Pin
Features: Registered
Configuration Features: 4 X 4 Gb
STORAGE & STORAGE CONTROLLER:
Hard Drive :None.
Optical Drive : None.
Storage Controller Type: 1 X Raid – Integrated – Pci Express 2.0 X4
Controller Interface Type: Serial Attached Scsi 2 (6gb)
Storage Controller Name: Smart Array P410i
Raid Level: Raid 0, Raid 1
DISPLAY & GRAPHICS CONTROLLER:
Graphics Controller Type: Integrated
Graphics Processor: Ati Rn-50
NETWORKING:
Networking: Network Adapter – Pci Expess 2.0 X8 – Integrated
Ethernet Ports: 6 X 10 Gigabit Ethernet
Ethernet Controller: Hp Nc553i
Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Protocol: Snmp, Ipmi 2.0, Smash Clp
Remote Management Controller: Integrated Lights-Out 3
Compliant Standards:
Ieee 802.1q, Ieee 802.1p, Ieee 802.3x,
Ieee 802.3ad (Lacp), Ieee 802.3ap
