GENERAL INFORMATION:
Manufacturer: hewlett packard.
Manufacturer part number: 589046-B21

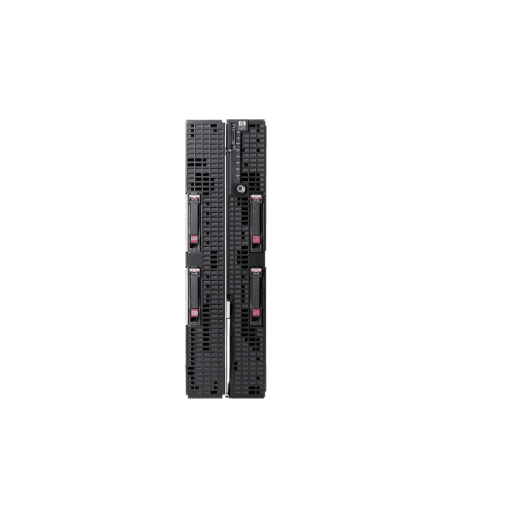

Product name: proliant bl680c g7 blade server.
PROCESSOR & CHIPSET:
Processor type : intel xeon e7540 (2.0ghz/6-core/18mb,6.40gt/s qpi,105w)
Multi-core technology : 6 core
64-bit computing : yes
Installed qty: 2
Max supported qty: 4
Upgradability: upgradable.
Chipset type : intel 7500
CACHE MEMORY:
Cache memory type : l3 cache.
Installed size : 38 mb.
Cache per processor : 18 mb.
RAM:
Installed size : 16 gb
Max supported size : 1 tb
Technology: ddr3 sdram
Form factor: dimm 240-pin
Features: registered
Configuration features: 4 x 4 gb
STORAGE & STORAGE CONTROLLER:
Hard drive :none.
Mas supported hdd: 4(four) hot-plug sff sas/sata/sdd drives
Optical drive : none.
Internal storage : sas: 4.0tb, sata: 4.0tb, sas ssd: 3.2tb, sata ssd: 480gb
Storage controller type: 1 x raid – integrated – pci express 2.0 x4
Controller interface type: serial attached scsi 2 (6gb)
Storage controller name: smart array p410i
Raid level: raid 0, raid 1
DISPLAY & GRAPHICS CONTROLLER:
Graphics controller type: integrated
Graphics processor: ati rn-50 1280 x 1024 x 16m color
Resolution color depths:
1280 x 1024, 16.7m , 64k, 256,16
1024 x 768, 16.7m, 64k, 256, 16
800 x 600, 16.7m, 64k, 256, 16
640 x 480, 16.7m, 64k, 256, 16
NETWORKING:
Networking: network adapter – pci express 2.0 x8 – integrated
Ethernet ports: 6 x 10 gigabit ethernet
Ethernet controller: hp nc553i
Data link protocol: gigabit ethernet, 10 gigabit ethernet
Remote management protocol: snmp, ipmi 2.0, smash clp
Remote management controller: integrated lights-out 3
COMPLIANT STANDARDS:
Ieee 802.1q, ieee 802.1p, ieee 802.3x,
Ieee 802.3ad (lacp), ieee 802.3ap
Expansion/connectivity:
Expansion bays total (free):
4 ( 4 ) x hot-swap – 2.5in sff .
Expansion slots total (free) :
4 ( 2 ) x processor.
64 ( 60 ) x memory – dimm 240-pin.
1 ( 1 ) x microsdhc.
7 ( 7 ) x expansion slot.
INTERFACES :
1 x management – hp ilo – rj-45
6 x network – ethernet 10gbase-kr – rj-45
1 x display / video
1 x hi-speed usb – 4 pin usb type a ( 1 internal )
