General Information :
Manufacturer : Hewlett Packard.
Manufacturer Part Number : 590480-B21

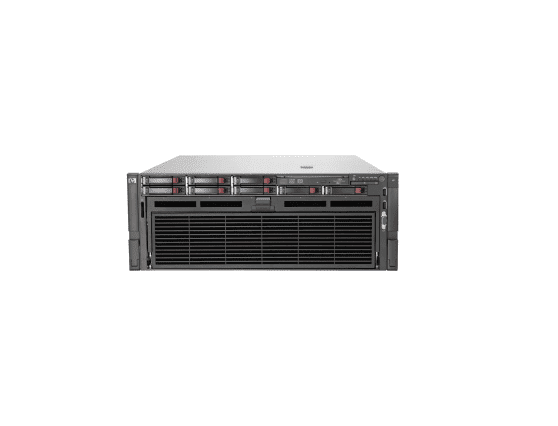

Product Name : Proliant Dl585 G7 Server.
Processor & Chip Set :
Processor Type: No Cpu
Max Supported Qty: 4
Upgradability: Upgradable
Supported Processor :
Amd Opteron 6164he, 6168, 6172, 6174, 6176se, 6166he, 6176, 6180se.
Amd Opteron 6136, 6128, 6132he, 6140
Chipset Type : Amd Sr5690/Sp5100
Bus Speed : 6400 Mhz
Ram :
Installed Size : 0 GB
Max Supported Size : 512 GB
Technology : Ddr3 Sdram, Advanced Ecc
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin.
Storage & Storage Controllers :
Hard Drive : None.
Optical Drive : None.
Storage Controller Type : 1 X Raid, Plug-In Card, Pci Express X8
Controller Interface Type : SAS Serial Attached Scsi 2
Storage Controller Name : Smart Array P410i
Raid Level : Raid 0, Raid 1, Raid 10
Display & Graphics Controller :
Graphics Controller Type : Integrated.
Graphics Processor : Ati Rn-50
Video Memory : 32 Mb
1600x1280x64k 16m Color
Networking :
Networking : Network Adapter, Pci Express X4, Integrated.
Ethernet Ports : 4 X Gigabit Ethernet.
Ethernet Controller : Hp Nc375i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet.
Remote Management Controller : Integrated Lights-Out 3
Features : Wake On Lan (Wol), Acpi Support.
Compliant Standards :
Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab
Ieee 802.1p, Ieee 802.3ad (Lacp)
Expansion / Connectivity :
Expansion Bays Total (Free) :
2 ( 1 ) X Front Accessible, 5.25in Slim Line.
8 ( 8 ) X Hot-Swap, 2.5in Sff.
Expansion Slots Total (Free) :
48 ( 48 ) X Memory, Dimm 240-Pin.
4 ( 4 ) X Processor.
2 ( 2 ) X Pci Express 2.0 X16
3 ( 3 ) X Pci Express 2.0 X8
Interfaces :
1 X Serial, Rs-232, 9 Pin D-Sub (Db-9)
1 X Keyboard, Generic, 6 Pin Mini-Din (Ps/2 Style)
1 X Mouse, Generic, 6 Pin Mini-Din (Ps/2 Style)
4 X Hi-Speed Usb, 4 Pin Usb Type A ,
4 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
1 X Management – Hp Ilo – Rj-45
2 X Display / Video – Vga – 15 Pin Hd D-Sub (Hd-15) ( 1 Front, 1 Rear )
Power Device :
Power Device Type : Power Supply, Hot Plug
Power Redundancy : Yes.
Max Supported Qty : 4
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 1200 Watt.
Dimension & Weight :
Width : 19 In.
Depth : 27.6 In.
Height : 6.9 In.
Weight : 66 Lbs.
