GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 590639-001

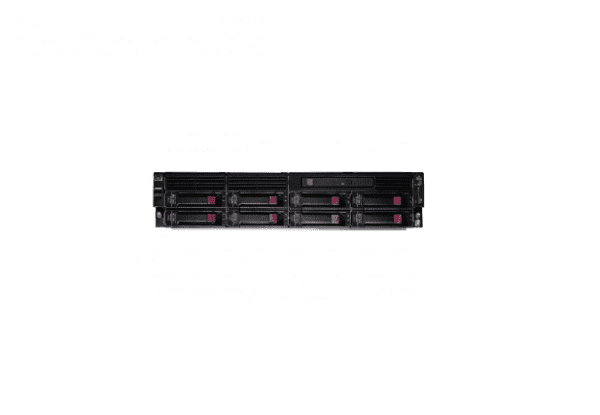

Product Name: Proliant Dl180 G6 2u Rack Mount
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon Processor E5620 (2.40 Ghz, 12mb L3 Cache, 80w, Ddr3-1066, Ht, Turbo 1/1/2/2)
Multi-Core Technology: Quad-Core (4 core)
64-Bit Computing: Yes
Installed Processor Qty: 1
Max Supported Qty: 2
Sockets Supported: Fclga1366
Chipset Type: Intel 5520
CACHE MEMORY:
Cache Memory Type: L3 Cache
Installed Size: 12 Mb
Cache Per Processor: 12 Mb
MEMORY:
Installed Ram Size: 8 Gb / 192 Gb (Max)
Technology: Ddr3 Sdram
Memory Speed: 1333 Mhz
Memory Specification Compliance: Pc3-10600r-9 (Rdimm)
Form Factor: Dimm 240-Pin
Features: Registered
Configuration Features: 2 X 4 Gb
STORAGE:
Hard Drive: None Ship Standard (Up To 12 Hot Plug Sata Or Sas Drives Supported)
Optical Drive: None Ship Standard
Internal Storage Supported:
24.0tb (12 X 2tb Hot Plug 3.5 Sata Hard Drives), Maximum
24.0tb (12 X 2tb Hot Plug 3.5 Sas Hard Drives), Maximum
Note: Internal Storage Expandable To 14 Sas/Sata Drives With 2 Rear
Drive Option Kit (P/N 488234-B21)
STORAGE CONTROLLER:
Hp Smart Array P212 /256mb Bbwc Controller (Raid 0/1/1+0/5/5+0)
Storage Controller Type: 1 X Raid – Plug-In Card – Pci Express 2.0 X8
Controller Interface Type: Serial Ata-300 / Sas 2.0
Storage Controller Name: Hp Smart Array P212
Raid Level: Raid 0, Raid 1, Raid 10, Raid 50
Buffer Size: 256 Mb
Note: Smart Array Advanced Pack License Key Upgrade (P/N 516471-B21)
Is Required To Enable Raid 6, 6+0
NETWORKING:
Networking: Network Adapter – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc362i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet.
