GENERAL INFORMATION :
Manufacturer : Hewlett Packard.
Manufacturer Part Number : 592227-B21

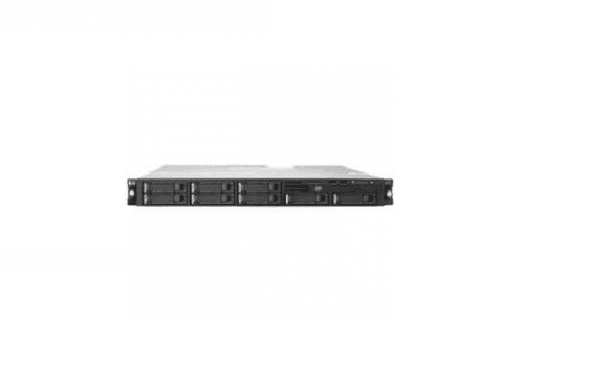

Product Name : Proliant Dl165 G7- Sff Cto Chassis
PROCESSOR & CHIPSET :
Processor Type: No CPU
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Type : Amd Chipset Sr5670/Sp5100
RAM :
Installed Size : 0 Gb
Max Supported Size : 384 Gb
Memory Slots : 24 Dimm Slots
Memory Speed : 1333mhz, 1066mhz, Or 800mhz
Form Factor : Dimm 240-Pin
STORAGE & STORAGE CONTROLLERS :
Hard Drive : None
Hard Drive Bays : Standard 2.5in Sff Hot Plug Sata
Optical Drive : None
Display & Graphics Controller :
Graphics Controller : 32mb Shared Supporting All Display Resolutions Up To 1600×1200 16bpp75hz
NETWORKINGÂ :
Ethernet Controller : Two Hp Nc362i Integrated Dual Port Gigabit Server Adapters
EXPANSION & CONNECTIVITY :
Expansion Bays Total (Free) :
1 ( 1 ) X Front Accessible, 5.25in Slim Line
4 ( 4 ) X Hot-Swap, 2.5in Sff
EXPANSION SLOTS TOTAL (FREE) :
( 24 ) Total ( 24 )Free Memory, Dimm 240-Pin
( 2 ) Total ( 2 )Free Processor.
( 1 ) Total ( 1 )Full-Length/Full Height X16 Pci-Express Gen2 Slot Or
( 1 ) Total ( 1 )Half-Length/Full Height X16 Pci-Express Gen2 Slot And
( 2 ) Total ( 2 )Low Profile X4 Pci-Express Gen2 Slot (Accepts X8
INTERFACES :
1 X Serial,
6 X Hi-Speed Usb, (Two Front, Two Internal, Two Rear)
4 X Network – Gigabit Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
1 X Management – Hp Ilo – Rj-45
POWER DEVICE :
Power Device Type : Power Supply, Hot-Plug
Power Redundancy : Yes
Voltage Required : Ac 120/230 V ( 50/60 Hz )
