General information :
Manufacturer : hewlett packard

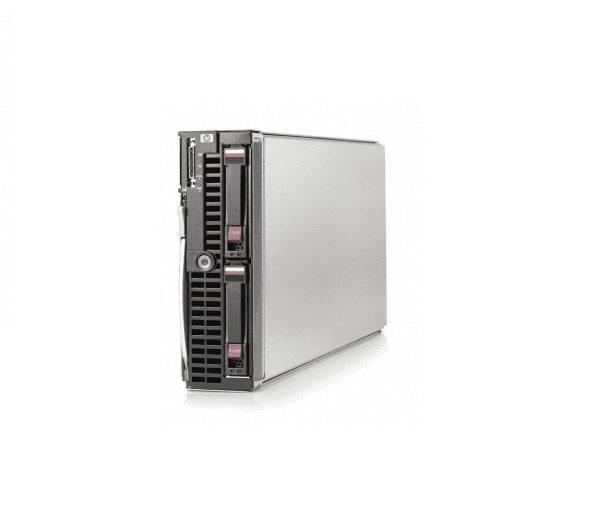

Product name : proliant ws460c g6 cto blade Server
Processor & chipset :
Processor type : no cpu
Max supported qty : 2
Upgradability : upgradable
Chipset : intel 5500
Cache memory type : l3 cache
Memory :
Installed size : 0 mb
Maximum size : 192 gb
Technology : ddr3 sdram
Form factor : dimm 240-pin
Ram supported : pc3-8500 – 192 gb – registered pc3-10600 – 48 gb – unbuffered
Storage & storage controller :
Hard drive : none
Storage controller type : 1 x raid – plug-in card – pci express x4
Controller interface type : serial Sata-150 / sas
Storage controller name : smart array p410i
Raid level : raid 0, raid 1
Display & graphics controllers :
Integrated ati rn-50, 32 mb video memory (on-board)
Resolution color depths :
1600 x 1200, 64k, 256, 16
1280 x 1024, 16.7m, 64k, 256, 16
1024 x 768, 16.7m, 64k, 256,16
800 x 600, 16.7m, 64k, 256, 16
640 x 480, 16.7m, 64k, 256, 16
Network & communication :
Networking : network adapter – pci express x4 – integrated
Ethernet ports : 2 x 10 gigabit ethernet
Ethernet controller(s) : hp nc532i
Data link protocol : ethernet, fast ethernet, gigabit ethernet, 10 gigabit ethernet
Remote management controller : integrated lights-out 2
Features : wake on lan (wol)
Compliant standards : ieee 802.3u, ieee802.3z, ieee 802.1q, ieee 802.1p, ieee 802.3x, ieee 802.3ad (lacp), ieee 802.3ae, ieee 802.3ap
Expansions & connectivity :
Expansion bays total (free) :
2 (total) / 2 (free) x hot-swap – 2.5in sff
Expansion slots total (free) :
2 (total) / 2 (free) x processor
12 (total) / 12 (free) x memory – dimm 240-pin
2 (total) / 2 (free) x pci express x8 – full-length
Interfaces & ports :
1 x management – hp ilo – rj-45
2 x network – ethernet 10gbase-t – rj-45
1 x display / video – vga – 15 pin hd d-sub (hd-15)
