GENERAL INFORMATION:
Manufacturer: Hewlett Packard.
Manufacturer Part Number: 594938-B21
Product Type : Workstation.

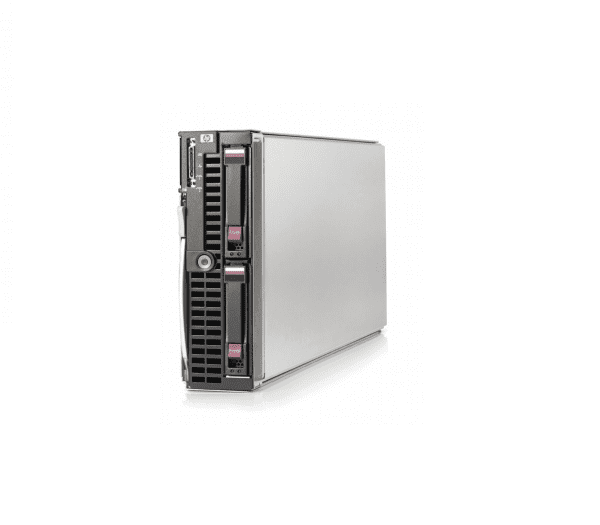

Product Name: Proliant Ws460c G6 Workstation Blade Server.
PROCESSOR & CHIPSET:
Processor Type : Ntel Xeon E5640 (2.66 Ghz, 12 Mb L3 Cache, 80w)
Multi-Core Technology : Quad-Core (4 core)
64-Bit Computing : Yes
Installed Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable.
Chipset Type : Intel 5500
CACHE MEMORY:
Cache Memory Type : L3 Cache.
Installed Size : 12 Mb.
Cache Per Processor : 12 Mb.
RAM:
Installed Size : 4 Gb
Max Supported Size : 192 Gb
Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin.
Features : Unbuffered
Configuration Features : 4 X 1 Gb
STORAGE:
Hard Drive :None.
Optical Drive : None.
STORAGE CONTROLLER:
Storage Controller Type : 1 X Raid – Plug-In Card – Pci Express X4
Controller Interface Type : Serial SAta-150 / Sas
Storage Controller Name : Smart Array P410i
Raid Level : Raid 0, Raid 1
DISPLAY & GRAPHICS CONTROLLER:
Multi-Gpu Configuration: 2 Single Gpu Cards
Graphics Processor: Nvidia Quadro Fx 770m
Video Memory: 256 Mb Gddr3 Sdram
Max Monitors Supported: 4
NETWORKING:
Networking : Network Adapter – Pci Express X4 – Integrated
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Hp Nc532i
Data Link Protocol: Ethernet,Fast Ethernet, Gigabit Ethernet,10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2
Features : Wake On Lan (Wol)
COMPLIANT STANDARDS :
IEEE 802.3U, IEEE 802.3Z, IEEE 802.1Q, IEEE 802.1P, IEEE 802.3X
IEEE 802.3AD (LACP), IEEE 802.3AE, IEEE 802.3AP
