GENERAL INFORMATION :
Manufacturer: Hewlett Packard
Manufacturer Part Number: 595166-001

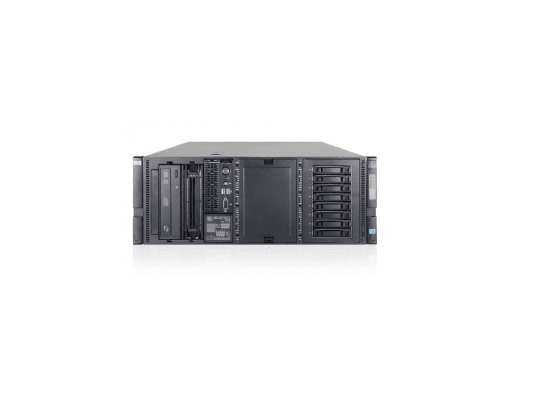

Product Name: Proliant Dl370 G6 4u Rack Mount
PROCESSOR & CHIPSET :
Processor Type: Intel Xeon X5650 (2.66ghz/6 Core/12mb/95w)
Max Turbo Speed: 3.06 Ghz
Multi-Core Technology: 6-Core
64-Bit Computing: Yes
Installed Qty: 2
Max Supported Qty: 2
Upgradability: Upgradable
Processor Main Features:
Hyper-Threading Technology
Intel Turbo Boost Technology
Chipset Type: Intel 5520
CACHE MEMORY :
Cache Memory Type: L3 Cache
Installed Size: 24 Mb
Cache Per Processor: 12 Mb
RAM :
Installed Size: 12 Gb
Max Supported Size: 384 Gb
Technology: Ddr3 Sdram – Ecc
Memory Speed: 1333 Mhz
Memory Specification Compliance: Pc3-10600
Form Factor: Dimm 240-Pin
Features: Registered
Configuration Features: 6 X 2 Gb
RAM SUPPORTED:
Pc3-10600 – 384 Gb – Registered – Ecc
Pc3-10600 – 48 Gb – Unbuffered – Ecc
STORAGE & STORAGE CONTROLLER :
Hard Drive: None
Optical Storage Type: Dvd Rom –Serial SAta
Storage Controller Type: 1 X Raid – Plug-In Card – Pci Express
Controller Interface Type: Serial Ata-300 / Sas 2.0
Storage Controller Name: Smart Array P410i
Channel Qty: 8
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size: 1 Gb
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type: Integrated
Video Memory: 64 Mb
NETWORKING :
Networking: Network Adapter – Integrated
Ethernet Ports: 4 X Gigabit Ethernet
Ethernet Controller: Hp Nc375i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 2 Standard
Features: Wake On Lan (Wol), Acpi Support
Compliant Standards:
Ieee 802.3, Ieee 802.3u, Ieee 802.1q
Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)
POWER DEVICE :
Power Device Type: Power Supply – Hot Plug
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 750 Watt
