GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 600332-B21

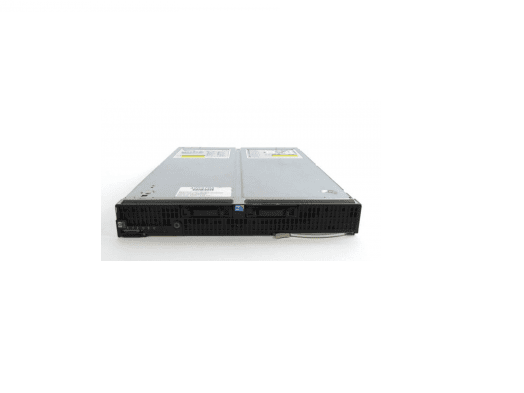

Product Name : Proliant Bl620c G7 Blade Server Chassis
PROCESSOR & CHIPSET :
Processor Type : No Cpu
Installed Qty : None
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel 7500
RAM :
Installed Size : 0 Gb
Max Supported Size : 1 Tb
Technology : Ddr3 Sdram
Form Factor : Dimm 240-Pin
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Optical Drive: None
Controller Interface Type : Sata-300 / Sas 2.0
Storage Controller Name : Smart Array P410i
Raid Level : Raid 0, Raid 1,
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Ati Es1000
NETWORK & COMMUNICATION :
Networking : Pci Express 2.0 X8 – Integrated
Ethernet Ports : 4 X 10 Gigabit Ethernet
Ethernet Controller : Hp Nc553i
Data Link Protocol : Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Protocol : Snmp, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-Out 3
EXPANSIONS & CONNECTIVITY :
Expansion Bays Total (Free) :
2 (Total) / 2 (Free) X Hot-Swap – 2.5in Sff
Expansion Slots Total (Free) :
3 (Total) / 3 (Free) X Expansion Slot
32(Total) / 32(Free) X Memory – Dimm 240-Pin
2(Total) / 2(Free) X Processor
1(Total) / 1(Free) X Sd Memory Card
Interfaces & Ports :
1 X Hp Ilo
1 X Display / Video – Vga
1 X Usb 2.0 ( 1 Internal )
4 X Lan (10gigabit Ethernet)
DIMENSIONS & WEIGHT :
Width : 2.19 In
Depth : 20.09 In
Height : 14.46 In
Weight : 17.9 Lbs
