GENERAL INFORMATION :
Manufacturer: Hewlett Packard
Manufacturer Part Number : 600426-005

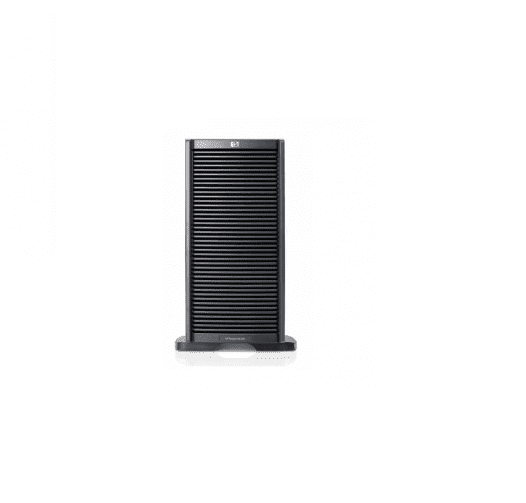

Product Name : Proliant Ml350 G6 Special 5u-Tower Server
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5620 (2.40 Ghz, 12mb L3, 80w)
Multi-Core Technology : Quad-Core
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel 5520
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 12 Mb
Cache Per Processor : 12 Mb
MEMORY :
Installed Size : 4 Gb
Max Supported Size : 192 Gb
Technology : Ddr3 Sdram – Advanced Ecc
Memory Speed : 1066 Mhz
Memory Specification Compliance : Pc3-8500
Form Factor : Dimm 240-Pin
Memory Protection : Unbuffered Ecc, Advanced Ecc, Mirrored Memory
STORAGE & STORAGE CONTROLLER :
Hard Drive : None Ship Standard
Internal Storage : Up To 8 Sff Standard
Optical Storage : Half-Height Sata Dvd-Rom Drive
Storage Controller Type (1st) : 1 X Raid – Plug-In Card – Pci Express 2.0 X4
Controller Interface Type : Serial SAta-300 / Sas 2.0
Storage Controller Name : Smart Array P410i
Buffer Size : 256 Mb
Storage Controller Type (2nd) : 1 X Serial Ata – Integrated
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated
Graphics Processor : Ati Rn50
Video Memory : 64 Mb
NETWORK CONTROLLER :
Networking : Network Adapter – Integrated
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc326i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet.
Features : Wake On Lan (Wol)
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DEVICE :
Device Type : Power Supply – Hot Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 460 Watt.
