GENERAL INFORMATION :
Manufacturer: Hewlett Packard
Manufacturer Part Number : 600427-005

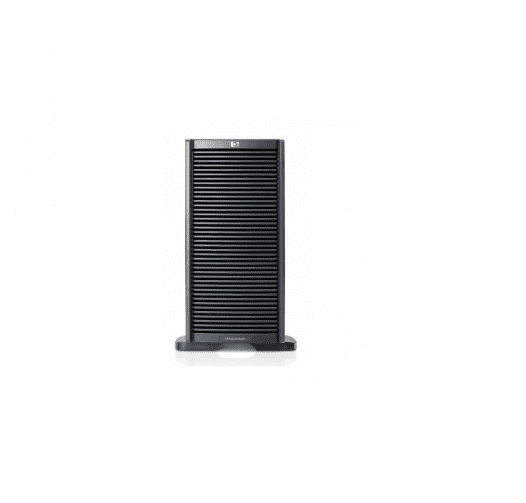

Product Name : Proliant Ml350 G6 5u-Tower Server S-Buy
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5630 / 2.53 Ghz
Multi-Core Technology: Quad-Core (4 core)
64-Bit Computing: Yes
Installed Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Type: Intel 5520
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 12 Mb
Cache Per Processor : 12 Mb
MEMORY :
Installed Size : 6 Gb
Maximum Size : 192 Gb
Technology : Ddr3 Sdram – Advanced Ecc
Memory Specification Compliance: Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered, Memory Mirroring
Configuration Features : 3 X 2 Gb
RAM SUPPORTED :
Pc3-10600 – 192 Gb – Registered Pc3-10600 – 48 Gb – Unbuffered
STORAGE & STORAGE CONTROLLER :
Hard Drive: 2 X 146 Gb – Hot Swap – SAS Serial Attached Scsi – 15000 Rpm .
Internal Storage: Up To 8 Lff Standard
Optical Storage : Hp Half-Height Sata Dvd-Rom Drive.
Storage Controller Type (1st) : 1 X Raid – Plug-In Card – Pci Express 2.0 X4
Controller Interface Type : Serial SAta-300 / Sas 2.0
Storage Controller Name : Smart Array P410i
Buffer Size : 256 M
Storage Controller Type (2nd) : 1 X Serial Ata – Integrated.
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated
Graphics Processor : Ati Rn50
Video Memory : 64 Mb
NETWORK CONTROLLER :
Networking : Network Adapter – Integrated
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc326i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet.
Features : Wake On Lan (Wol)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
POWER DEVICE :
Device Type : Power Supply – Hot-Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
