GENERAL INFORMATION:
Manufacturer : Hewlett Packard
Manufacturer Part Number : 603569-B21

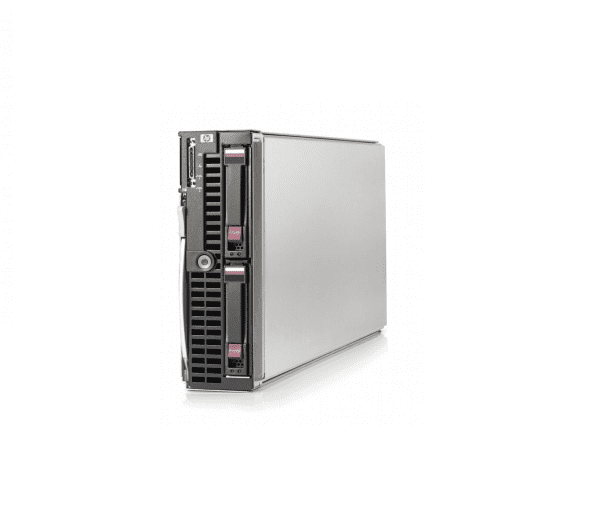

Product Name : Proliant Bl460c G7 2-Way Blade Server.
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5640 (2.66 Ghz, 12mb L3, 80w)
Multi-Core Technology : Quad-Core ( 4 core)
64-Bit Computing : Yes
Installed Qty : 1
Upgradability : Upgradable.
Processor Main Features :
Hyper-Threading Technology.
Intel Turbo Boost Technology.
Chipset Type : Intel 5520
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 12 Mb
Cache Per Processor : 12 Mb
RAM :
Installed Size : 6 Gb
Max Supported Size : 192 Gb
Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 3 X 2 Gb
RAM SUPPORTED :
Pc3-8500 – 192 Gb – Registered.
Pc3-10600 – 48 Gb – Unbuffered.
Pc3-10600 – 96 Gb – Registered.
MEMORY PROTECTION :
Advanced Ecc.
Mirrored Memory.
Memory Lock Step Mode.
Online Spare.
STORAGE & STORAGE CONTROLLER :
Hard Drive : None.
Optical Drive : None.
Internal Storage : Two Hot Plug Sff Drive Bays.
Storage Controller Type : 1 X Raid – Plug-In Card – Pci Express X4
Controller Interface Type : Serial SAta-300 / Sas 2.0
Storage Controller Name : Smart Array P410i
Raid Level : Raid 0, Raid 1
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated
Graphics Processor : Matrox Mga G200
Supported Resolution :
1600 X 1200, 64k, 256, 16
1280 X 1024, 16.7m, 64k, 256, 16
1024 X 768, 16.7m, 64k, 256,16
800 X 600, 16.7m, 64k, 256, 16
640 X 480, 16.7m, 64k, 256, 16
NETWORKING :
Networking : Network Adapter – Integrated.
Ethernet Ports : 2 X 10 Gigabit Ethernet.
Ethernet Controller : Hp Nc532i
Data Link Protocol : Gigabit Ethernet,10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 3
Features : Wake On Lan (Wol)
Compliant Standards :
Ieee 802.1q, Ieee 802.1p, Ieee 802.3x
Ieee 802.3ad (Lacp), Ieee 802.3ap
