PRODUCT DETAILS:
General information:
Manufacturer : hewlett packard.
Manufacturer part number : 605877-005

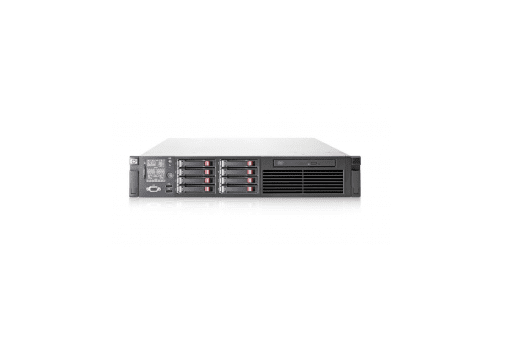

Product name : proliant DL380 G7 2u rack Mount (S-buy) server.
Processor & chipset :
Processor type : intel xeon E5620(2.40 GHz, 12MB L3 cache, 80W)
Multi-core technology : quad-core (4 core)
Installed qty : 1
Max supported qty : 2
Upgradability : upgradable.
64-bit computing : yes.
Chipset type : intel 5520
Cache memory :
Cache memory type : L3 cache.
Installed size : 12 MB.
Cache per processor : 12 MB.
Ram :
Installed size : 6 GB.
Max supported size : 48 GB.
Ram technology : DDR3 SDRAM.
Memory specification compliance : PC3-10600
Form factor : DIMM 240-pin.
Features : unbuffered.
Configuration features : 3 x 2 GB
Storage & storage controller :
Hard drive : none.
Optical storage type : sata DVD-RW.
Internal storage :
Standard: 8 SFF sas/sata HDD bays.
Storage controller : 1 x raid, plug-in card, PCI express 2.0 x8
Controller interface type : serial ATA-300 / SAS 2.0
Storage controller name : smart array p410I with 512MB FBWC.
Raid level : raid 0, raid 1, raid 5, raid 6, raid 1+0, raid 5+0, raid 6+0
Buffer size : 512 GB
Display & graphics controller :
Graphics controller type : integrated.
Graphics processor: ATI ES1000
Video memory : 64 MB.
Supported resolution :
16 bit color: maximum resolution of 1600 x 1200
32 bit color: maximum resolution of 1280 x 1024
Networking :
Networking : network adapter,integrated.
Ethernet ports : 4 x gigabit ethernet.
Ethernet controller : 2 x HP NC382i.
Data link protocol : ethernet, fast ethernet, gigabit ethernet.
Remote management controller : integrated lights-out 3
Features : wake on LAN (WOL), ACPI support, PXE support.
Compliant standards :
Ieee 802.3, IEEE 802.3U, IEEE 802.1Q, IEEE 802.3AB
Ieee 802.1P, IEEE 802.3AD (LACP)
Expansion / connectivity :
Expansion bays total (free) :
1 ( 0 ) x front accessible, 5.25in slim line.
8 ( 8 ) x hot-swap, 2.5in sff.
Expansion slots total (free) :
2 ( 1 ) x PCI express 2.0 x8, half-length, full-height ( x4 mode ).
1 ( 1 ) x PCI express 2.0 x16, full-length, full-height ( x8 mode ).
18 ( 16 ) x memory, DIMM 240-pin.
2 ( 1 ) x processor.
Interfaces :
1 x keyboard.
1 x mouse.
5 x usb 2.0 ports (2 front, 2 back, 1 internal)
1 x serial, RS-232, 9 pin d-sub (db-9)
2 x display / video, VGA, 15 pin HD D-SUB (HD-15)
4 x network – ethernet 10base-T/100base-TX/1000base-T – RJ-45
Power device :
Power device type : power supply.
Installed qty : 1
Max supported qty : 2
Voltage required : AC 120/230 V ( 50/60 HZ )
Power provided : 460W hot plug power supply.
