GENERAL INFORMATION:
Manufacturer : Hewlett Packard
Manufacturer Part Number : 633404-001

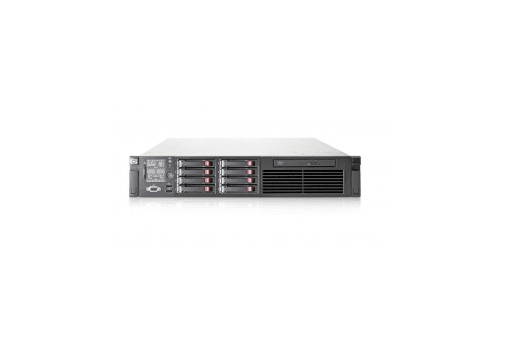

Product Name : Proliant Dl380 G7 2u Rack Mount (Performance Models) Server
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon Processor X5690(3.46ghz, 6-Core, 12mb, 130w)
Multi-Core Technology : 6 Core.
Installed Qty : 2
Max Supported Qty : 2
Upgradability : Upgradable.
Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology
64-Bit Computing : Yes.
Chipset Type : Intel 5520
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 24 Mb
Cache Per Processor : 12 Mb.
RAM :
Installed Size : 12 Gb
Max Supported Size : 144 Gb
Ram Technology : Ddr3 Sdram.
Memory Speed : 1333 Mhz.
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered.
Configuration Features : 6 X 2 Gb
STORAGE & STORAGE CONTROLLER :
Hard Drive : None.
Optical Storage Type: Dvd-Rw – Serial Ata
INTERNAL STORAGE :
Standard: 8 Sff Sas/Sata Hdd Bays.
Optional: 16 Sff Sas/Sata Hdd Bays.
Storage Controller : 1 X Raid, Plug-In Card, Pci Express X8
Controller Interface Type : Serial Ata-300 / Sas 2.0
Storage Controller Name : Smart Array P410i With 1gb Fbwc
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size : 1 Gb.
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated
Graphics Processor: Ati Es1000
Max Allocated Ram Size : 64 Mb
Supported Resolution :
16 Bit Color: Maximum Resolution Of 1600 X 1200
32 Bit Color: Maximum Resolution Of 1280 X 1024
NETWORKING :
Networking : Network Adapter-Integrated
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : 2 X Hp Nc382i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 3
Features : Wake On Lan (Wol), Acpi Support, Pxe Support
Compliant Standards :
Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab
Ieee 802.1p, Ieee 802.3ad (Lacp)
POWER DEVICEÂ :
Power Device Type: Power Supply- Hot-Plug .
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 750 Watt
