GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 636071-001

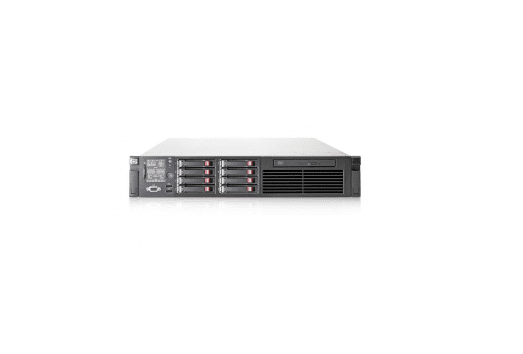

Product Name: Proliant Dl385 G7- 2-Way 2u Rack Mount
PROCESSOR & CHIPSET:
Processor Type: Amd Opteron 6180se/ 2.5 Ghz
Multi-Core Technology: 12 Core
64-Bit Computing: Yes
Installed Qty: 2
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Type: Amd Sr5690/Sp5100
CACHE MEMORY:
Type: L3 Cache
Installed Size: 24 Mb
Cache Per Processor: 12 Mb
MEMORY:
Installed Ram Size: 16 Gb / 256 Gb (Max)
Technology: Ddr3 Sdram – Advanced Ecc
Memory Speed: 1333 Mhz
Memory Specification Compliance: Pc3-10600
Form Factor: Dimm 240-Pin
Features: Registered
Configuration Features: 8 X 2 Gb
Ram Supported:
Pc3-10600 – 256 Gb – Registered
Pc3-10600 – 64 Gb – Unbuffered
STORAGE CONTROLLERS:
Hard Drive: None.
Optical Storage Type : Dvd-Rw – Sata
Storage Controller Type: 1 X Raid – Plug-In Card – Pci Express 2.0 X4
Controller Interface Type: Serial SAta-300 / Sas 2.0
Storage Controller Name: Smart Array P410i With 1gb Fbwc
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size: 1 Gb
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor: Ati Es1000
Video Interfaces : Vga
NETWORK & COMMUNICATION:
Networking: Network Adapter – Pci Express X4 – Integrated
Ethernet Ports: 4 X Gigabit Ethernet
Ethernet Controller(S): 2 X Hp Nc382i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 3
Features: Wake On Lan (Wol), Acpi Support
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
POWER DESCRIPTION:
Device Type: Power Supply – Hot-Plug
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 750 Watt
