GENERAL INFORMATION:
Manufacturer : Hewlett Packard
Manufacturer Part Number : 640011-005

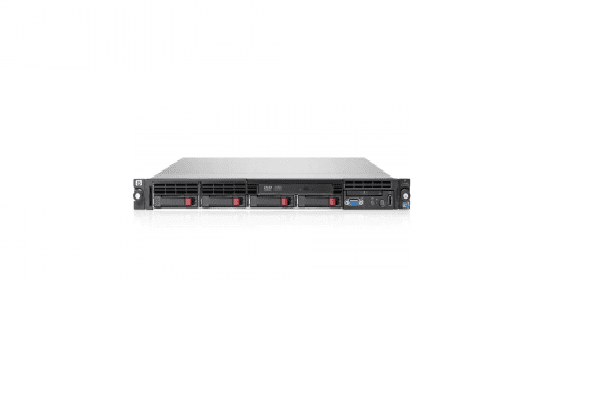

Product Name : Proliant Dl360 G7 1u Rack Mount .
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5649 (2.53ghz/6-Core/12mb/80w
Multi-Core Technology :6 Core
Installed Qty : 2
Max Supported Qty : 2
Upgradability : Upgradable.
64-Bit Computing : Yes.
Chipset Type : Intel 5520
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 24 Mb
Cache Per Processor : 12 Mb
RAM :
Installed Size : 8 Gb
Max Supported Size : 144gb
Ram Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered, Dual Rank.
Configuration Features : 2 X 4 Gb.
RAM SUPPORTED :
Pc3-8500 – 192 Gb – Registered Pc3-10600 – 144 Gb – Registered
Pc3-10600 – 48 Gb – Unbuffered
STORAGE & STORAGE CONTROLLER :
Hard Drive : None.
Optical Drive : Hp Dl360 Sl 12.7mm Sata Dvd-Rw.
Max Internal Storage : 4 Sff Sas/Sata Hdd Bays.
Storage Controller Type: 1 X Raid – Plug-I Card – Pci Express X8
Controller Interface Type: Serial Ata-300 / Sas 2.0
Storage Controller Name: Smart Array P410i With 512mb Fbwc
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size: 512 Mb
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated
Graphics Processor: Ati Es1000
Max Allocated Ram Size : 32 Mb
Supported Resolution :
16 Bit Color: Maximum Resolution Of 1600 X 1200
32 Bit Color: Maximum Resolution Of 1280 X 1024
NETWORKING :
Networking : Network Adapter – Pci Express X4 – Integrated
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : 2 X Hp Nc382i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 3
Features : Wake On Lan (Wol), Acpi Support, Pxe Support
Compliant Standards:
Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab
Ieee 802.1p, Ieee 802.3ad (Lacp)
POWER DEVICE :
Power Device Type: Power Supply – Hot-Plug
Power Redundancy: Optional
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 460 Watt
