GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 643780-B21

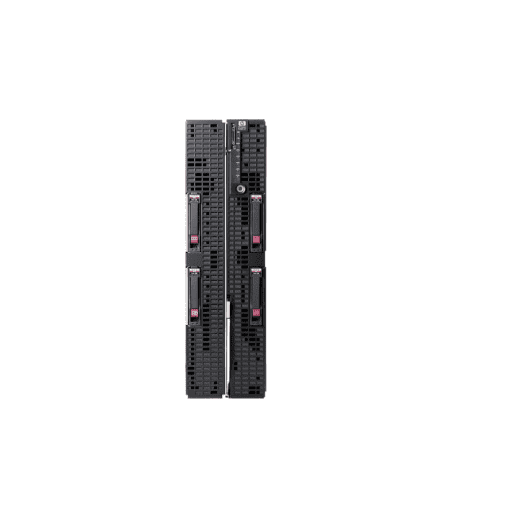

Product Name: Proliant Bl680c G7 Blade Server
PROCESSOR & CHIPSET:
Processor Type : Intel Xeon E7-4860(2.26ghz/10-Core/24mb, 6.40gt/S Qpi, 130w)
Multi-Core Technology : 10 Core
64-Bit Computing : Yes
Installed Qty: 2
Max Supported Qty: 4
Processor Main Features: Intel Quickpath Interconnect.
Chipset Type : Intel 7500
CACHE MEMORY:
Cache Memory Type : L3 Cache.
Installed Size : 48 Mb.
Cache Per Processor : 24 Mb.
RAM:
Installed Size : 64 Gb
Max Supported Size : 1 Tb
Technology: Ddr3 Sdram
Memory Speed: 1066 Mhz
Memory Specification Compliance: Pc3-10600
Form Factor: Dimm 240-Pin
Features: Registered
Configuration Features: 8 X 8 Gb
STORAGE & STORAGE CONTROLLER:
Hard Drive :None.
Mas Supported Hdd: 4(Four) Hot-Plug Sff Sas/Sata/Sdd Drives
Optical Drive : None.
Internal Storage : Sas: 4.0tb, Sata: 4.0tb, Sas Ssd: 3.2tb, Sata Ssd: 480gb
Storage Controller Type: 1 X Raid – Integrated – Pci Express 2.0 X4
Controller Interface Type: Serial Attached Scsi 2 (6gb)
Storage Controller Name: Smart Array P410i
Raid Level: Raid 0, Raid 1, Raid 1+0
DISPLAY & GRAPHICS CONTROLLER:
Graphics Controller Type: Integrated
Graphics Processor: Ati Rn-50 1280 X 1024 X 16m Color
NETWORKING:
Networking: Network Adapter – Pci Express 2.0 X8 – Integrated
Ethernet Ports: 6 X 10 Gigabit Ethernet
Ethernet Controller: Hp Nc553i
Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Protocol: Snmp, Ipmi 2.0, Smash Clp
Remote Management Controller: Integrated Lights-Out 3
