GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 643785-B21

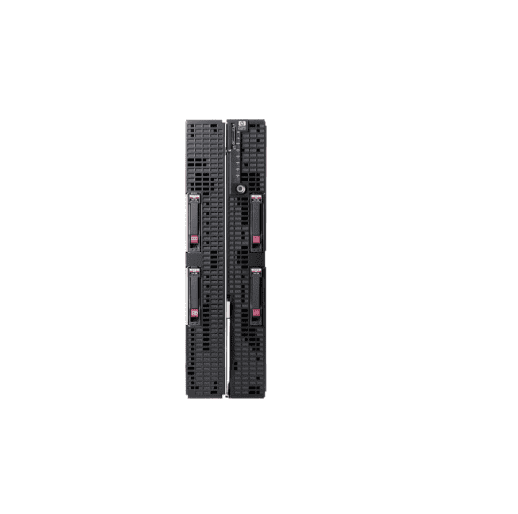

Product Name : Proliant Bl680c G7 Blade Server Chassis
PROCESSOR & CHIPSET :
Processor Type : No Cpu
Installed Qty : None
Max Supported Qty : 4
Upgradability : Upgradable
Chipset Type : Intel 7500
RAM :
Installed Size : 0 Gb
Max Supported Size : 2 Tb
Technology : Ddr3 Sdram
Form Factor : Dimm 240-Pin
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Optical Drive: None
Controller Interface Type : Sata 2
Storage Controller Name : Smart Array P410i
Raid Level : Raid 0, Raid 1,
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated Ati Rn-50 1280 X 1024 X 16m Color
Resolution Color Depths :
1280 X 1024, 16.7M , 64K, 256,16
1024 X 768, 16.7M, 64K, 256, 16
800 X 600, 16.7M, 64K, 256, 16
640 X 480, 16.7M, 64K, 256, 16
NETWORK & COMMUNICATION :
Networking : Pci Express 2.0 X8 – Integrated
Ethernet Ports : 6 X 10 Gigabit Ethernet
Ethernet Controller : Hp Nc553i
Data Link Protocol : Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Protocol : Snmp, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-Out 3
COMPLIANT STANDARDS :
IEEE 802.1Q,
IEEE 802.1P,
IEEE 802.3X,
IEEE 802.3AD (LACP),
IEEE 802.3AP
