GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 646677-001

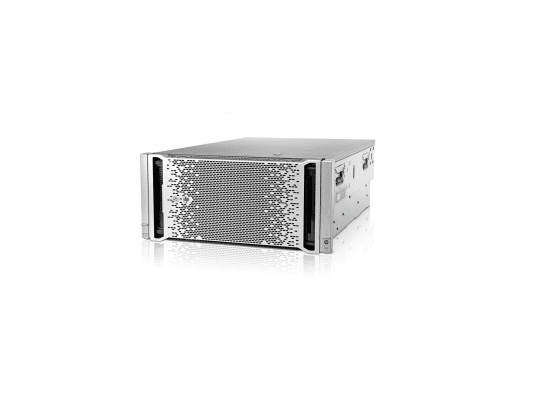

Product Name: Proliant Ml350p G8- 2-Way 5u Rack Mount Server
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2630 / 2.30 Ghz
Multi-Core Technology: Hexa-Core (6 Core)
64 Bit Computing: Yes
Installed Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Processor Main Features: Hyper Threading Technology
Chipset Model: Intel C600
CACHE MEMORY:
Installed Size : L3 Cache – 15 Mb
Cache Per Processor : 15 Mb
MEMORY:
Installed Ram Size: 8 Gb / 384 Gb (Max)
Technology: Ddr3 Sdram
Form Factor: Dimm 240-Pin
Features: Registered
Configuration Features: 2 X 4 Gb
RAM SUPPORTED :
PC3-12800 – 384 GB – REGISTERED
PC3-10600 – 128 GB – UNBUFFERED – ADVANCED ECC
STORAGE:
Hard Drive: None
Optical Storage : Dvd-Rw – Sata
Card Reader Type : Card Reader
Supported Flash Memory Cards : Sd Memory Card
STORAGE CONTROLLERS:
Storage Controller Type: 1 X Raid – Plug-In Card – Pci Express 3.0 X8
Controller Interface Type : Sata 3gb/S / Sas 6gb/S
Storage Controller Name : Smart Array P420i
Raid Levels: Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size : 1 GB
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor : Matrox G200
Video Interfaces : Vga
NETWORK & COMMUNICATION:
Networking Type : Integrated
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Hp 331i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DESCRIPTION:
Device Type : Power Supply Hot Plug
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
Power Provided : 750 Watt
