GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 647339-B21

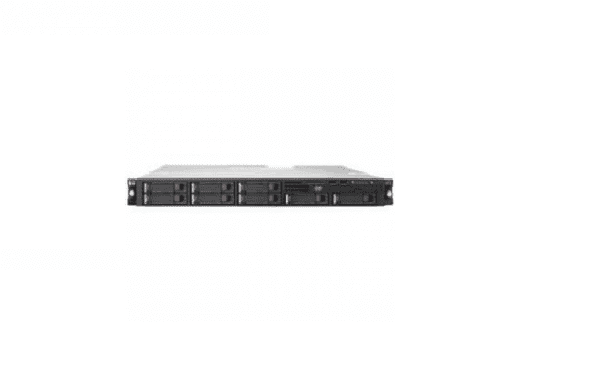

Product Name: Proliant Dl120 G7 – 1u Rack Mount (Cto Model)
PROCESSOR & CHIPSET:
Cpu : No Cpu
Max Cpu Qty : 1
Chipset : Intel C200 Series
Upgradability: Upgradable
MEMORY:
Installed Ram Size: 0 Mb / 16 Gb (Max)
Technology: Ddr3 Sdram
Form Factor: Dimm 240-Pin
STORAGE :
Hard Drive: None.
Optical Drice : None.
STORAGE CONTROLLER :
Type : 1 X Sata
Controller Interface Type : Sata 3gb/S
Storage Controller Name : Smart Array B110i
Channel Qty : 4
Raid Level : Raid 0, Raid 1, Raid 10
NETWORK & COMMUNICATION :
Type : Integrated
Interface (Bus) Type : Pci Express 2.0 X1
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : 2 X Hp Nc112i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Ipmi 2.0
Remote Management Controller : Integrated Lights-Out 3
Features : Wake On Lan (Wol), Acpi Support, Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 801.1p
EXPANSION & CONNECTIVITY :
Expansion Bays Total (Free) :
1 (Total) / 1 (Free) X Front Accessible – 5.25 Slim Line
4 (Total) / 4 (Free) X Hot-Swap – 3.5 Inch Lff
Expansion Slots Total (Free) :
1 (Total) / 1 (Free) X Pci Express 2.0 X8 – Low-Profile ( X4 Mode )
1 (Total) / 1 (Free) X Pci Express 2.0 X16 – Full-Length, Full-Height
4 (Total) / 4 (Free) X Memory – Dimm 240-Pin
1 (Total) / 1 (Free) X Processor
Interfaces & Ports:
1 X Serial
1 X Display / Video
6 X Usb 2.0 ( 2 Front, 4 Rear )
1 X Lan (Gigabit Ethernet)
1 X Management (Nic)
