GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 653747-001

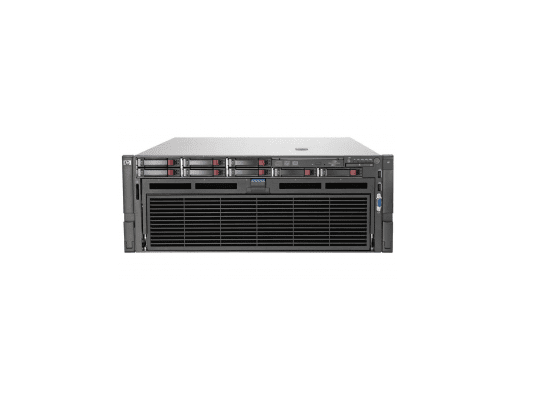

Product Name: Proliant Dl585 G7 4u Rack Mount
PROCESSOR & CHIPSET:
Processor Type: Amd Opteron 6272 / 2.1 Ghz
Multi-Core Technology: 16 Core
64-Bit Computing: Yes
Installed Qty: 4
Max Supported Qty: 4
Upgradability: Upgradable
Chipset Type: Amd Sr5690/Sp5100
Cache Memory:
Type: L3 Cache
Installed Size: 64 Mb
Cache Per Processor: 16 Mb
MEMORY:
Installed Ram Size: 64 Gb / 1 Tb (Max)
Technology: Ddr3 Sdram – Advanced Ecc
Memory Speed: 1333 Mhz
Memory Specification Compliance: Pc3-10600
Form Factor: Dimm 240-Pin
Features: Registered, Online Spare Memory
Configuration Features: 8 X 8 Gb
STORAGE:
Hard Drive: None.
STORAGE CONTROLLERS:
Storage Controller Type: 1 X Raid – Integrated – Pci Express 2.0 X4
Controller Interface Type: Serial SAta-300 / Sas 2.0
Storage Controller Name: Smart Array P410i With 1gb Fbwc
Raid Level: Raid 0, Raid 1, Raid 10
Buffer Size: 1 Gb
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor: Ati Es1000
Video Memory: 32 Mb
Network & Communication:
Networking: Network Adapter – Pci Express 2.0 X8 – Integrated
Ethernet Ports: 4 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc375i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 3
Features: Wake On Lan (Wol), Acpi Support, Pxe Support
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)
POWER DESCRIPTION:
Device Type: Power Supply – Hot Plug
Power Redundancy: Yes
Installed Qty: 2
Max Supported Qty: 4
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 1200 Watt.
