General information :
Manufacturer: hewlett packard
Manufacturer part number: 654079-s01

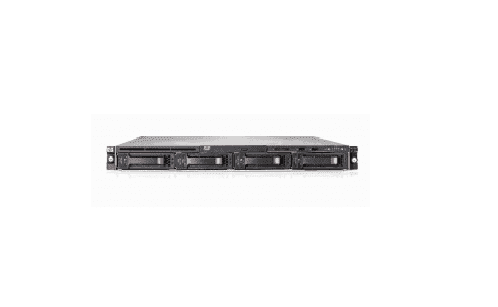

Product name: proliant dl320 g6 1u rack Mount s-buy
Processor & chipset :
Processor type: intel xeon e5606 / 2.13 ghz
Multi-core technology: quad-core ( 4 core)
Installed qty: 1
Max supported qty: 1
Upgradability: upgradable
Chipset type: intel 5500
Cache memory :
Cache memory type : l3 cache
Installed size : 8 mb
Cache per processor : 8 mb
Memory :
Installed ram size : 4 gb
Maximum ram size : 192 gb
Technology: ddr3 sdram – ecc
Memory speed: 1333 mhz
Memory specification compliance: pc3-10600
Form factor: dimm 240-pin
Features: registered, single rank
Configuration features: 1 x 4 gb
Ram supported pc3-8500 – 192 gb – registered – ecc pc3-8500 – 24 gb – unbuffered – ecc
Storage & storage controllers :
Hard drive: none
Optical storage type: dvd-rom – serial Sata
Storage controller type: 1 x serial ata
Controller interface type: serial ata-150
Storage controller name: smart array p410i
Raid level: raid 0, raid 1, raid 10
Display & graphics :
Graphics controller type : integrated
Graphics processor : ati es1000
Video memory: 64 mb
Network & communication :
Networking: network adapter – integrated
Ethernet ports: 2 x gigabit ethernet
Ethernet controller(s): hp nc326i
Data link protocol: ethernet, fast ethernet, gigabit ethernet
Remote management controller: ipmi 2.0
Features: wake on lan (wol), pxe support
Compliant standards: ieee 802.3, ieee 802.3u, ieee 802.3ab
Expansion & connectivity :
Expansion bays total (free):
4 (total) / 4 (free) x internal – 3.5in lff
1 (total) / 0 (free) x front accessible – 5.25in slim line
Expansion slots total (free):
1 (total) / 1 (free) x pci express x16 – low-profile ( x4 mode )
1 (total) / 1 (free) x pci express x16 – full-length, full-height
1 (total) / 0 (free) x processor – lga1366 socket
9 (total) / 8 (free) x memory – dimm 240-pin
1 (total) / 1 (free) x sd memory card
Interfaces & ports:
1 x keyboard – generic – 6 pin mini-din (ps/2 style)
1 x mouse – generic – 6 pin mini-din (ps/2 style)
2 x network – ethernet 10base-t/100base-tx/1000base-tx – rj-45
6 x hi-speed usb – 4 pin usb type a ( 2 front, 4 rear )
1 x display / video
1 x serial
Power description :
Device type: power supply – hot plug
Power redundancy: yes
Power redundancy scheme: 1+1
Installed qty: 2
Max supported qty: 2
Voltage required: ac 120/230 v ( 50/60 hz )
Power provided: 460 watt
