GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 654853-001

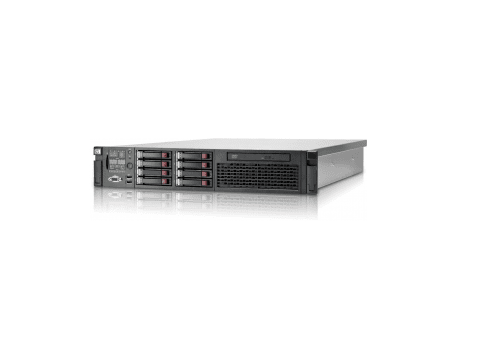

Product Name : Proliant Dl385 G7 2u Rack Mount Base Model
PROCESSOR & CHIPSET :
Processor Type : Amd Opteron 6274 / 2.2 Ghz
Multi-Core Technology : 16 Core
64-Bit Computing : Yes
Installed Qty : 2
Max Supported Qty : 2
Chipset Type : Amd Sr5690/Sp5100
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 32 Mb
Cache Per Processor : 16 Mb
MEMORY :
Installed Size : 32 Gb
Maximum Size : 512 Gb
Technology : Ddr3 Sdram – Advanced Ecc
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 4 X 8 Gb
Ram Supported : Pc3-10600 – 512 Gb – Registered Pc3-10600 – 64 Gb – Unbuffered
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Internal Storage : 8-Sff Sas/Sata Hdd Bays
Optical Drive : Not Included On Base Model
Storage Controller Type : 1 X Raid – Integrated – Pci Express 2.0 X4
Controller Interface Type : Serial Ata-300 / Sas 2.0
Storage Controller Name : Smart Array P410i With 512mb Fbwc
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size : 512 Mb
GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Ati Es1000 64mb Video Standard
16 Bit Color: Maximum Resolution Of 1600 X 1200
32 Bit Color: Maximum Resolution Of 1280 X 1024
NETWORK & COMMUNICATION :
Networking : Network Adapter – Pci Express X4 – Integrated
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller(S) : 2 X Hp Nc382i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 3
Features : Wake On Lan (Wol), Acpi Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
POWER DEVICE :
Device Type : Power Supply – Hot-Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 460 Watt
