GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 655086-B21

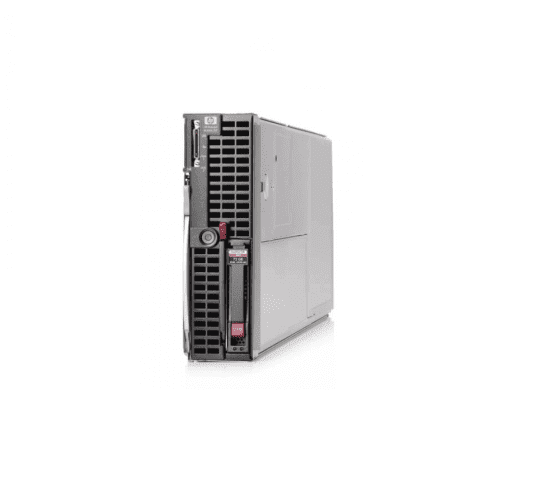

Product Name : Proliant Bl465c G7 2-Way Blade Server
PROCESSOR & CHIPSET :
Processor Type : Amd Opteron 6276 / 2.30gh
Multi-Core Technology : 16 Core
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Amd Sr5690/Sp5100
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 16 Mb
Cache Per Processor : 16 Mb
MEMORY :
Installed Size : 8 Gb
Maximum Size : 128 Gb
Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 2 X 4 Gb
Ram Supported : Pc3-10600 – 128 Gb – Registered Pc3-8500 – 256 Gb – Registered Pc3-10600 – 64 Gb – Unbuffered
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Storage Controller Type : 1 X Raid – Pci Express 2.0 X4
Controller Interface Type : Serial SAta-300 / Sas 2.0
Storage Controller Name : Smart Array P410i With 1gb Fbwc
Raid Level : Raid 0, Raid 1
Buffer Size : 1 GB
DISPLAY & GRAPHICS CONTROLLERS :
Graphics : Integrated Ati Rn-50 1280 X 1024 X 16m Color
Resolution Color Depths :
1280 X 1024, 16.7M , 64K, 256,16
1024 X 768, 16.7M, 64K, 256, 16
800 X 600, 16.7M, 64K, 256, 16
640 X 480, 16.7M, 64K, 256, 16
NETWORK & COMMUNICATION :
Networking : Network Adapter – Integrated
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller(S) : Hp Nc551i
Data Link Protocol : 10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2
Features : Wake On Lan (Wol)
Compliant Standards : IEEE 802.1Q, IEEE 802.1P, IEEE 802.3X, IEEE 802.3AD (LACP), IEEE 802.3AP
