General Information :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 655087-B21

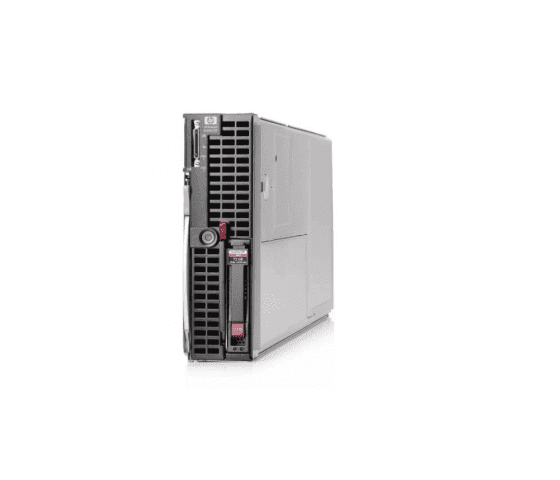

Product Name : Proliant Bl465c G7 Blade Server
Processor & Chipset :
Processor Type : Amd Opteron 6238 / 2.6GHz
Multi-Core Technology : 12 Core
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
64-Bit Computing : Yes
Cache : L2 – 12 X 512 Kb
Chipset Type : Amd Sr5690/Sp5100
Cache Memory :
Cache Memory Type : L3 Cache
Installed Size : 16 Mb
Cache Per Processor : 16 Mb
Memory :
Installed Size : 8 Gb
Max Supported Size : 128 Gb
Ram Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 2 X 4 Gb
Ram Supported : Pc3-10600 – 128 Gb – Registered Pc3-8500 – 256 Gb – Registered Pc3-10600 – 64 Gb – Unbuffered
Storage & Storage Controller :
Hard Drive : None
Optical Drive : None
Storage Controller Type : 1 X Raid – Pci Express 2.0 X4
Controller Interface Type : Serial SAta-300 / Sas 2.0
Storage Controller Name : Smart Array P410i With 1gb Fbwc
Raid Level : Raid 0, Raid 1
Buffer Size : 1 Gb
Display & Graphics Controllers :
Graphics Controller Type : Integrated
Graphics Processor : Ati Rn-50
Resolution Color Depths :
Depths 1280 X 1024, 16.7m , 64k, 256,16
1024 X 768, 16.7m, 64k, 256, 16
800 X 600, 16.7m, 64k, 256, 16
640 X 480, 16.7m, 64k, 256, 16
Network & Communication :
Networking : Network Adapter – Integrated
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Hp Nc551i
Data Link Protocol : 10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2
Features : Wake On Lan (Wol)
Compliant Standards :
Ieee 802.1q, Ieee 802.1p, Ieee 802.3x
Ieee 802.3ad (Lacp), Ieee 802.3ap
Expansions & Connectivity :
Expansion Bays Total (Free):
2 ( 2 ) X Hot-Swap – 2.5i In Sff
Expansion Slots Total (Free):
16 ( 14 ) X Memory – Dimm 240-Pin
2 ( 1 ) X Processor
Interfaces & Ports :
2 X Network – Ethernet 10gbase-Kr – Rj-45
1 X Management – Hp Ilo – Rj-45
