GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 661326-S01

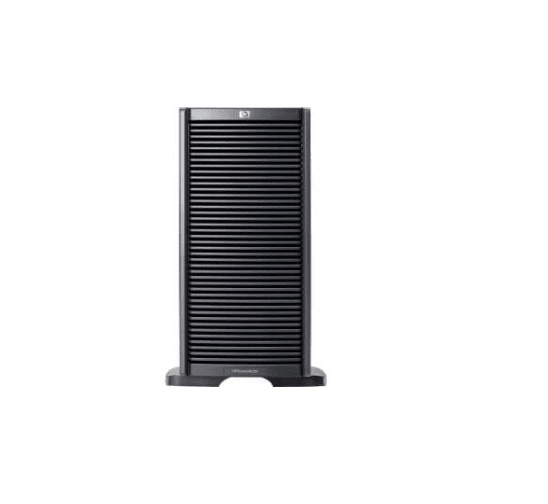

Product Name : Proliant Ml350 G6 5u Tower Server S-Buy
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5645 / 2.4 Ghz
Multi-Core Technology : 6 Core
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
Processor Main Features :
Hyper-Threading Technology,
Intel Turbo Boost Technology
Chipset Type : Intel 5520
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 12 Mb
Cache Per Processor : 12 Mb
MEMORY :
Installed Size : 4 Gb
Maximum Size : 288 Gb
Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 1 X 4 Gb
RAM SUPPORTED :
Pc3-10600 – 288 Gb – Registered Pc3-10600 – 48 Gb – Unbuffered – Ecc Pc3-8500 – 192 Gb – Registered
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Optical Device : Dvd±Rw (±R Dl) – Serial SAta
Storage Controller Type : 1 X Raid – Integrated – Pci Express 2.0 X4
Controller Interface Type : Serial Ata-300 / Sas 2.0
Storage Controller Name : Smart Array P410i
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size : 256 MB
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Ati Rn50
Video Memory : 64 MB
NETWORK & COMMUNICATION :
Networking : Network Adapter – Pci Express X4 – Integrated
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller(S) : Hp Nc326i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
POWER DEVICE :
Device Type : Power Supply – Hot Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 460 Watt.
