GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 662084-001

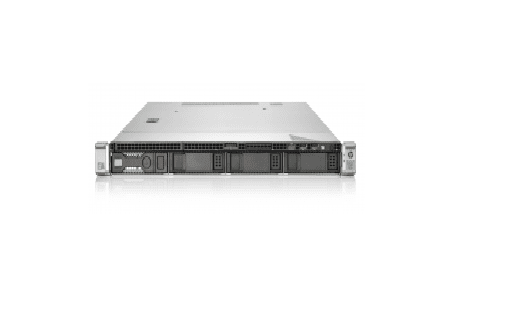

Product Name : Proliant Dl160 G8 1u Rack Mount Model
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2640 / 2.5ghz
Number Of Cores : Hexa-Core (6 Core)
64-Bit Computing : Yes
Installed Qty : 2
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel C600
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 30 Mb
Cache Per Processor : 15 Mb
MEMORY :
Installed Size : 16 Gb
Maximum Size : 384 Gb
Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered, Quad Channel Memory Architecture, Hp Smartmemory
Configuration Features : 4 X 4 Gb
Number Of Total Memory Slots : 24
Ram Supported : Pc3-12800 – 384 Gb – Registered Pc3-10600 – 128 Gb – Unbuffered
STORAGE & STORAGE CONTROLLERÂ :
Hard Drive : None
Storage Controller Type : 1 X Raid – Plug-In Card
Controller Interface (1st) Type : Serial Ata-600 / Sas 2.0
Storage Controller Name : Smart Array P420i With 1gb Fbwc
Raid Level : Raid 0, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Storage Controller (2nd) Type : 1 X Serial Ata – Integrated
Controller Interface Type : Serial SAta-600
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
NETWORK & COMMUNICATION :
Networking : Network Adapter – Integrated
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller(S) : Hp Nc361i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad
