GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 686713-S01

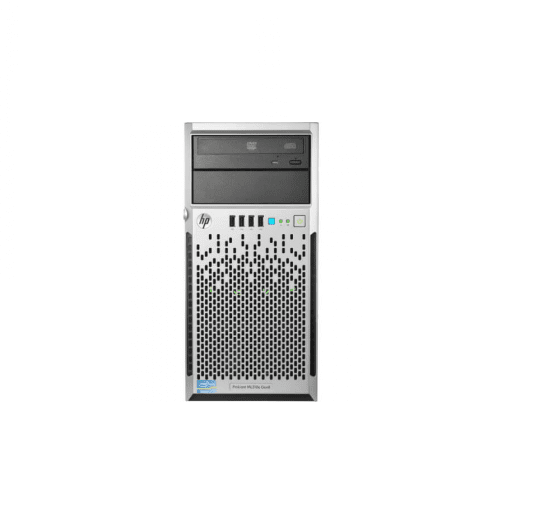

Product Name : Proliant Ml350p Gen8 2-Way 5u Tower Server S-Buy
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2620 / 2.0GHz
Number Of Cores : 6 Core (Hexa-Core)
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel C600
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 15 Mb
Cache Per Processor : 15 Mb
MEMORY :
Installed Size : 4 Gb
Maximum Size : 768 Gb
Technology : Ddr3 Sdram
Form Factor : Dimm 240-Pin
Features : Registered,
Single Rank,
Quad Channel Memory Architecture,
Hp Smart Memory
Configuration Features : 1 X 4 Gb
RAM SUPPORTED :
PC3-12800 – 384 GB – Registered
PC3-10600 – 128 GB – Unbuffered – Advanced Ecc
PC3-10600 – 768 GB – Load-Reduced
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Optical Drive Type : Dvd-Rom – Serial SAta
Card Reader Type : Card Reader
Supported Flash Memory Cards : Sd Memory Card
Storage Controller Type : 1 X Raid – Plug-In Card – Pci Express 3.0 X8
Controller Interface Type : Serial Ata-300 / Sas 2.0
Storage Controller Name : Smart Array P420i/512mb Fbwc
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size : 512 Mb
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
NETWORK & COMMUNICATION :
Networking : Network Adapter – Integrated
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller(S) : Hp 331i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
POWER DEVICE :
Device Type : Power Supply – Hot Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 460 Watt
