GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 699045-B21

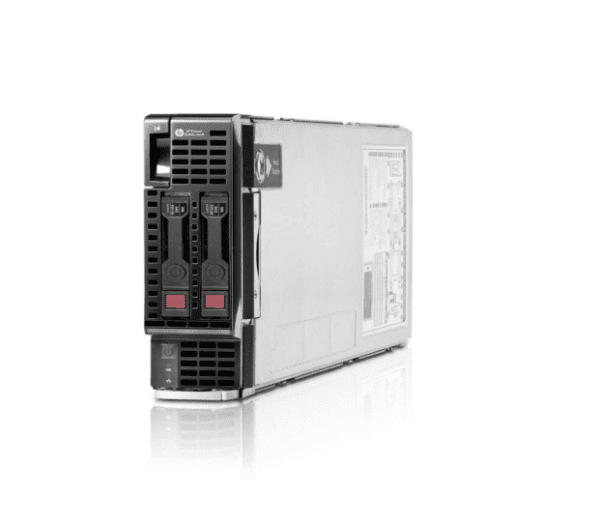

Product Name : Proliant Bl465c GEN8 Blade Server
PROCESSOR & CHIPSET :
Processor Type : Amd Second-Generation Opteron 6380 / 2.5ghz
Multi-Core Technology : 16 Core
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Amd Sr5690/Sp5100
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 16 Mb
Cache Per Processor : 16 Mb
MEMORY :
Installed Size : 16 Gb
Maximum Size : 512 Gb
Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 2 X 8 Gb
Ram Supported : Pc3-10600 – 512gb Load-Reduced Pc3-12800 – 256gb Registered
STORAGE & STORAGE CONTROLLER :
Hard Drive : One Ship Standard
Supports : Up To Two Hp Sff Hot Plug Sas/Sata/Sdd Drives
Internal Storage : Sas: 2.4tb, Sata: 2.0tb, Sas Ssd: 1.6tb, Sata Ssd: 1.6tb,
Optical Drive Bay : None
Storage Controller Name : Smart Array P220i With 512mb Fbwc
Raid Level : Raid 0, Raid 1
Buffer Size : 512 Gb
DISPLAY & GRAPHICS CONTROLLERS :
Integrated Matrox G200 Video Standard
1280 X 1024 (32 Bpp)
1920 X 1200 (16 Bpp)
Hp Ilo 4 On System Management Memory
16 Mb Flash
256 Mb Ddr 3 With Ecc (112 Mb After Ecc And Video)
NETWORK & COMMUNICATION :
Network Controller : One Hp Flexfabric 10gb 2-Port 554flb Flexiblelom
Remote Management Controller : Integrated Lights-Out 4
Remote Management Protocol : Snmp, Ipmi 2.0
Compliant Standards : Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.3ae, Ieee 802.3ap
