GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 703932-001

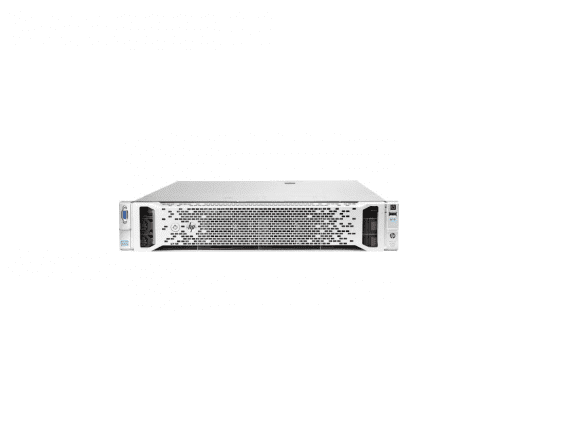

Product Name : Proliant Dl385p Gen8 2u Rack Mount (Maximized Consolidation Model)
PROCESSOR & CHIPSET :
Processor Type : Amd Opteron 6376 / 2.3ghz
Multi-Core Technology : 16 Core
Cpu Socket Type : Socket G34
64-Bit Computing : Yes
Installed Qty : 2
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Amd Sr5690/Sp5100
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 32 Mb
Cache Per Processor : 16 Mb
MEMORY :
Installed Size : 32 Gb
Maximum Size : 768 Gb
Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered, Hp Smartmemory
Configuration Features : 4 X 8 Gb
Ram Supported : Pc3-12800 – 384 Gb – Regstered Pc3-10600 – 768 Gb – Load-Reduced Pc3-10600 – 128 Gb – Unbuffered – Advanced Ecc
STORAGE & STORAGE CONTROLLER :
Hard Drive : None Ship Standard
Internal Storage : 25-Sff Sas/Sata Hdd Bays
Optical Drive Bay : None Available
Storage Controller Type : 1 X Serial Attached Scsi 2-Integrated- Pci Express X4
Controller Interface Type : Sata-300 / Sas 2.0
Storage Controller Name : Hp Smart Array P420i/2gb Fbwc
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size : 2gb
DISPLAY & GRAPHICS CONTROLLERS :
Integrated Matrox G200 Video Standard
1280 X 1024 (32 Bpp)
1920 X 1200 (16 Bpp)
Hp Ilo 4 On System Management Memory
16 Mb Flash
256 Mb Ddr 3 With Ecc (112 Mb After Ecc And Video)
NETWORK & COMMUNICATION :
Interface (Bus) Type : Pci Express 2.0 X4
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Hp Ethernet 1gb 4-Port 331flr Adapter
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)=b
