GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 706539-S01

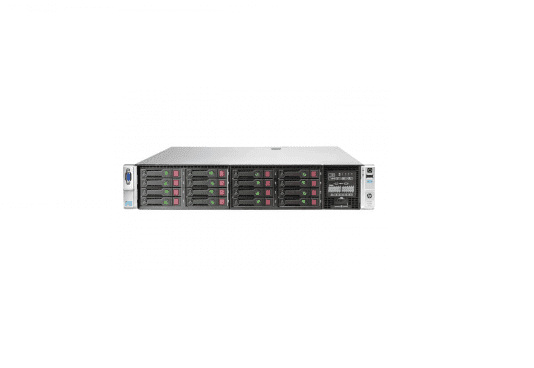

Product Name: Proliant Dl380p Gen8 2u Rack Mount Buy Server
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2640 (2.50ghz/6 Core/ 7.2gt-S Qpi/95w)
Number Of Cores: 6 Core
64 Bit Computing: Yes
Installed Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
PROCESSOR MAIN FEATURES:
Hyper-Threading Technology.
Intel Quickpath Interconnect
Intel Turbo Boost Technology 2
Chipset Model: Intel C600
CACHE MEMORY :
Cache Memory Type: L3 Cache
Installed Size : 15 Mb
Cache Per Processor: 15 Mb
RAM :
Installed Ram Size: 16 Gb
Max Supported Size: 384 Gb
Technology: Ddr3 Sdram
Memory Speed: 1333 Mhz
Memory Specification Compliance: Pc3-10600
Form Factor: Dimm 240-Pin
Features: Registered, Low-Voltage, Hp Smartmemory
Configuration Features: 2 X 8 Gb
RAM SUPPORTED:
Pc3-12800 – 384 Gb – Registered
Pc3-10600 – 768 Gb – Low Voltage – Load-Reduced
Pc3-12800 – 128 Gb – Unbuffered – Advanced Ecc
Pc3-10600 – 384 Gb – Hypercloud
STORAGE & STORAGE CONTROLLER:
Storage Type : None.
Max Internal Storage : Standard: 25 Sff Sas/Sata Hdd Bays
Optical Drive Bay: None.
Storage Controller Interface Type: Sata-600 / Sas 2.0
Storage Controller Name: Smart Array P420i With 1gb Fbwc
Channel Qty: 8
Raid Level: Raid 0, Raid 1, Raid 5,Raid 10, Raid 5+0
Buffer Size: 1 Gb
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type: Integrated
Graphics Processor: Matrox G200
Video Interfaces: Vga
NETWORKING :
Networking Type: Plug-In Card
Ethernet Ports: 4x Gigabit Ethernet
Ethernet Controller: Hp 331flr
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 4
Features: Wake On Lan (Wol), Pxe Support
COMPLIANT STANDARDS:
Ieee 802.3, Ieee 802.3u, Ieee 802.1q
Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)
