GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 712329-001

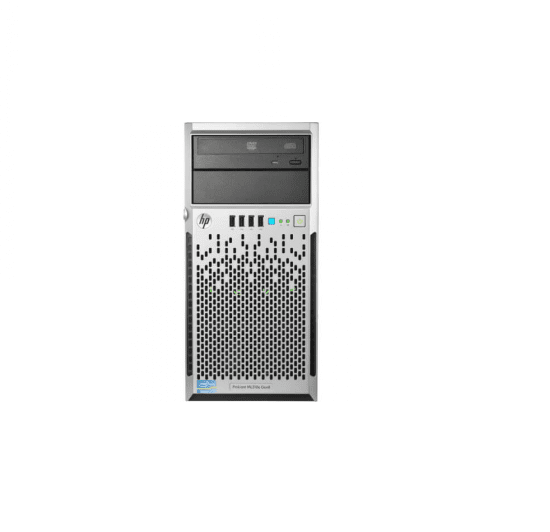

Product Name : Proliant Ml310e Gen8 V2 4u Tower Micro Tower Server (Base Model)
Processor & Chipset :
Processor Type : Intel Xeon E3-1220V3 /3.1ghz
Multi-Core Technology : Quad-Core (4 Core)
64-Bit Processing : Yes
Installed Qty : 1
Max Supported Qty : 1
Chipset Type : Intel C222
CACHE MEMORY :
Cache Memory : 8 Mb L3 Cache
Cache Per Processor : 8 MB
MEMORY :
Installed Size : 4 Gb / 32 Gb (Max)
Technology : Ddr3 Sdram – Ecc
Memory Speed : 1600 Mhz
Memory Specification Compliance : Pc3-12800
Form Factor : Dimm 240-Pin
Features : Unbuffered, Dual Channel Memory Architecture, Hp Smartmemory
Configuration Features : 1 X 4 Gb
STRAGE & STORAGE CONTROLLER :
Hard Drive : No Hdd
Optical Drive Type : Dvd-Writer
Storage Controller (1st) Type : 1 X Sata – Integrated – Pci Express 2.0
Controller Interface Type : Sata 6gb/S
Storage Controller Name : Hp Dynamic Smart Array B120i
Channel Qty : 6
Raid Level : Raid 0, Raid 1, Raid 10
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
Video Interfaces : Vga
NETWORK & COMMUNICATION :
Networking Type : Integrated
Interface (Bus) Type : Pci Express X2
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc332i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
EXPANSIONS & CONNECTIVITY :
Expansion Bays Total (Free) :
2 (Total) / 1 (Free) X External 5.25inch X 1/2h
4 (Total) / 4 (Free) X Hot-Swap 3.5inch Lff
Expansion Slots Total (Free) :
1 (Total) / 0 (Free) X Cpu
4 (Total) / 3 (Free) X Dimm 240-Pin
1 (Total) / 1 (Free) X Pcie 2.0 X4 – Half-Length, Full-Height ( X1 Mode )
1 (Total) / 1 (Free) X Pcie 2.0 X8 – Full-Length, Full-Height ( X1 Mode )
1 (Total) / 1 (Free) X Pcie 3.0 X8 – Full-Length, Full-Height
1 (Total) / 1 (Free) X Pcie 3.0 X16 – Full-Length, Full-Height ( X8 Mode )
Interfaces & Ports :
1 X Serial
1 X Vga
2 X Lan (Gigabit Ethernet)
1 X Hp Ilo
5 X Usb 2.0 ( 4 Front, 1 Internal )
2 X Usb 3.0
POWER DEVICE :
Device Type : Power Supply
Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
Power Provided : 350 Watt
DIMENSIONS & WEIGHT :
Width : 6.9 In
Depth : 18.7 In
Height : 14.5 In
Weight : 25.3 Lbs
