.General Information:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 728551-S01

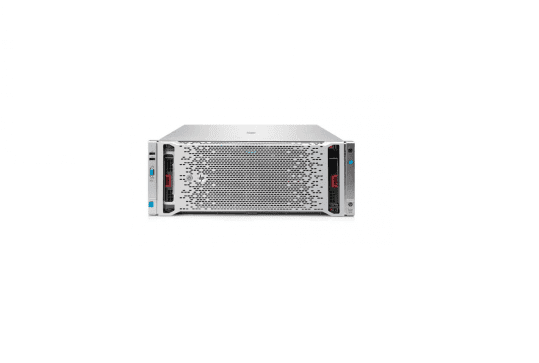

Product Name: Proliant Dl580 Gen8 4u Rack Mount (S-Buy)
Processor & Chipset:
Processor Type: Intel Xeon E7-4890v2 /2.8GHz
Multi-Core Technology: 15 Core
Installed Qty: 2
Max Supported Qty: 4
Cpu Upgradability : Upgradable
Chipset Type: Intel C602j
Cache Memory:
Type: L3 Cache
Installed Size: 75 Mb
Cache Per Processor: 37.5 Mb
Memory:
Installed Ram Size: 64GB/3tb(Max)
Technology: Ddr3 Sdram
Memory Speed : 1600 Mhz
Memory Specification Compliance: Pc3-14900
Form Factor: Dimm 240-Pin
Features: Registered, Online Spare Memory, Quad Channel Memory Architecture, HP Smartmemory
Configuration Features: 8 X 8 GB
Storage:
Hard Drive: None
Storage Controllers:
Storage Controller Type: 1 X Raid – Integrated – Pci Express 2.0 X4
Controller Interface Type: Sata 6GB/S / Sas 12GB/S
Storage Controller Name: Smart Array P830i With 2GB Fbwc
Channel Qty : 8
Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size: 2 GB
Display & Graphics:
Graphics Controller Type: Integrated
Graphics Processor: Matrox G200
Video Interfaces : Vga
Network & Communication:
type : plug-in card
interface (bus) type : pci express 2.0 x4
Ethernet Ports : 4x Gigabit Ethernet
Ethernet Controller : HP 331flr
Data Link Protocol : Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Acpi Support, Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)
Expansion & Connectivity:
Expansion Bays Total (Free):
10 (Total) / 10 (Free) X Hot Swap – 2.5inch Sff
Expansion Slots Total (Free):
96 (Total) / 88 (Free) X Memory – Dimm 240-Pin
4 (Total) / 2 (Free) X Processor
5 (Total) / 5 (Free) X Pci Express 3.0 X16 – Full-Length, Full-Height
4 (Total) / 4 (Free) X Pci Express 3.0 X16 – Full-Length, Full-Height(X8 Mode)
1 (Total) / 0 (Free) X Flexiblelom
1 (Total) / 1 (Free) X Microsd Card
Interfaces & Ports:
1 X Serial
2 X Vga (1 Front, 1 Rear)
1 X Hp Ilo
8 X Usb 2.0 (2 Front, 4 Rear, 2 Internal)
2 X Lan (10gigabit Ethernet)
Power Description:
Device Type: Power Supply – Hot-Plug
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Installed Qty: 2
Max Supported Qty: 4
Voltage Required: Ac 120/230 V (50/60 Hz)
Power Provided: 1200 Watt
80 Plus Certification : 80 Plus Platinum
Dimensions & Weight:
Width : 19 in
Depth : 27.6 in
Height: 6.9 in
Weight: 66.1 lbs
