GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 750490-S01

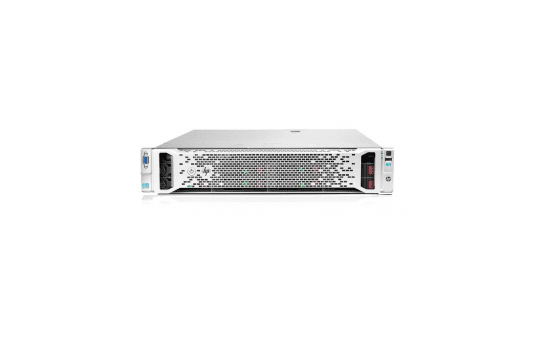

Product Name: Proliant Dl385p Gen8 – 2u Rack Mount (Maximized Consolidation Model-S/Buy)
PROCESSOR & CHIPSET :
Processor Type : Amd Opteron 6386se/ 2.8ghz
Number Of Cores : 16 Core
64-Bit Computing : Yes
Installed Qty : 2
Upgradability : Upgradable
Chipset Type : Amd Sr5690 Northbridge And Sp5100 Southbridge
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 16mb
Cache Per Processor : 8mb
MEMORY :
Installed Size : 64gb (4x16gb) Dual Rank
Memory Technology: Ddr3 Sdram – Advanced Ecc
Technology : Ddr3 Sdram Pc3-12800r (Ddr3-1600)
Form Factor : Dimm 240-Pin
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Card Reader Type : Card Reader
Supported Flash Memory Cards : Sd Memory Card
Storage Controller Type : 1 X Raid – Integrated – Pci Express 2.0 X4
Controller Interface Type : Sata-300 / Sas 2.0
Storage Controller Name : Smart Array P420i With 2gb Fbwc
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size : 2 Gb
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
Video Interfaces : Vga
NETWORK & COMMUNICATION :
Networking : Pci Express X4
Ethernet Controller(S) : 1gb 4-Port 331flr Adapter
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1P, IEEE 802.3AD (LACP)
POWER DEVICE :
Device Type : Power Supply – Hot-Plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
Power Provided : 750 Watt
