General

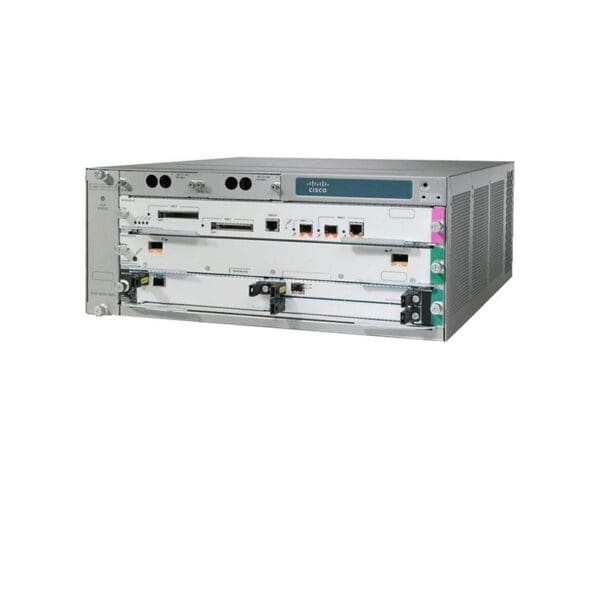

Device Type: Router – with Cisco 7603 Series Route Switch Processor 720 with 10 Gigabit Ethernet (RSP720-3C-10GE)
Enclosure Type: Rack-mountable – modular – 4U
Model 7603S
Product Type: Router Chassis
Router Bundle
Connectivity Technology: Wired
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Performance Switching capacity: 720 Gbps ¦ IPv4 routing: 400 Mbps ¦ IPv6 routing: 200 Mbps
Capacity ACL rules: 128000 ¦ IPv4 routes: 256000 ¦ IPv6 routes: 128000 ¦ NetFlow entries: 128000
Network / Transport Protocol: TCP/IP, ICMP/IP, DHCP
Routing Protocol: OSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM, GRE, Bidirectional PIM
Features: Layer 3 switching, layer 2 switching, dynamic IP address assignment, DHCP support, NAT support, VPN support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, DiffServ support, Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN, Virtual Route Forwarding-Lite (VRF-Lite)
Compliant Standards IEEE 802.1x, NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZ 3548 Class A, CSA C22.2 No. 60950-00, ICES-003 Class A, EN300-386
RAM 2 GB (installed) / 6 GB (max)
Flash Memory 1 GB (installed) / 2 GB (max)
Expansion / Connectivity
Interfaces 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ 2 x SFP (mini-GBIC) ¦ 2 x X2
Expansion Slots 3 (total) / 2 (free) x expansion slot ¦ 3 (total) / 2 (free) x CompactFlash Card – type II
Installed Modules Qty (Max) 1 (installed) / 3 (max)
Power
Power Device Internal power supply – hot-plug
Power Redundancy Yes
Installed Qty 1 (installed) / 2 (max)
Miscellaneous
Rack Mounting Kit Included
Dimensions & Weight
Width 17.4 in
Depth 20.3 in
Height 7 in
Weight 27.12 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85% (non-condensing)
