GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 769505-B21

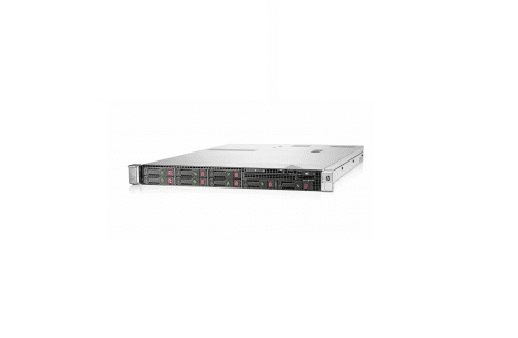

Product Name : Proliant Dl160 Gen9 – 1u Rack Mount Server(Base Model)
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2609v3/ 1.9ghz
Quickpath Interconnect : 6.40 Gt/S
Number Of Cores : 6 Core
64-Bit Computing : Yes
Compatible Processor Socket : Fclga2011-3
Installed Qty : 1
Max Supported Qty : 2
Chipset Type : Intel C610 Series
CACHE MEMORY :
Cache Memory Type : Smart Cache
Installed Size : 15mb
Cache Per Processor : 15 Mb
MEMORY :
Installed Size : 16gb (2×8 Gb) Dual Rank X4 / 256 Gb (Max)
Technology : Ddr4 Sdram Pc4-17000r (Ddr4-1600)
Form Factor : Dimm 288-Pin
Total Memory Slots : 16 Ddr4 Slots
STORAGE:
Hard Drive : None
Optical Drive : None
STORAGE CONTROLLERS:
Storage Controller Name : Smart Array H240
Buffer Size : None
Disk Drive : 12gb/S Sas (Serial Attached Scsi), 6gb/S Sata (Serial Advanced Technology Attachment)
Sas Port Link Rate : 12gb/S Per Physical Link Supported
Architecture : Serial Attached Scsi (Sas), Serial Advanced Technology Attachment (Sata)
Sas Connectors : 2×4 Internal (Mini-Sas)
Data Transfer Method : 1.2gb/S Bandwidth Per Port For Combined Throughput Of Up To 9.6gb/S
Simultaneous Connection : 2 X 4 Sas Connectors
Port Transfer Rate : 1.2 Gb/S Per X8 Sas Port
Maximum Capacity : 144tb
Memory Addressing : 64-Bit, Supporting Servers Memory Greater Than 4gb
Raid Support : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated Matrox G200eh2
NETWORK & COMMUNICATION :
Networking : Network Adapter – Integrated
Interface (Bus) Type : Pci Express 2.0 X2
Ethernet Ports : 2x Gigabit Ethernet
Ethernet Controller(S) : Hp Nc361i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1as, Ieee 802.3az
POWER DESCRIPTION :
Device Type : Non-Hot-Plug Power Supply
Installed Qty : 1
Nominal Voltage : Ac 100-240v (50/60 Hz)
Power Provided : 550 Watt.
