GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 776935-B21

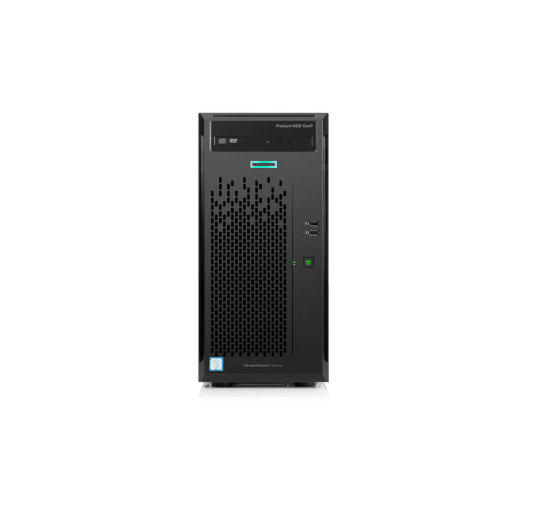

Product Name: Proliant Ml110 Gen9 – 4.5u Tower Server (Cto Model)
PROCESSOR & CHIPSET :
Processor Type : No Cpu
64-Bit Computing : Yes
Compatible Processor Socket : Fclga2011-3
Installed Qty : 0
Max Supported Qty : 1
Chipset Type : Intel C610 Series
CACHE MEMORY :
Cache Memory Type : Smart Cache
Installed Size : 0mb
MEMORY :
Installed Size : 0 Gb / 256 Gb (Max)
Technology : Ddr4 Sdram – Advanced Ecc
Memory Specification Compliance : Pc4-17000
Form Factor : Dimm 288-Pin
Memory Slots: 8 x DDR4 RAM Slots
Features : Registered, Online Spare Memory, Hp Smartmemory
Ram Supported : Pc4-17000 – 128 Gb – Load-Reduced ¦ Pc4-17000 – 256 Gb – Registered
STORAGE:
Hard Drive : No Hdd
Optical Drive : None
STORAGE CONTROLLERS:
Storage Controller Name : Smart Array B140i
Buffer Size : None
Disk Drive : Up To 6gb/S Sata (Serial Ata)
Connectors : 10 Internal Sata Connectors
Server Interface : X4 Pcie 2.0
Sata Speed : 6gb/S Sata Links
Logical Drives Supported : Up To 8 Logical Volumes (6 Physical Drives)
ost Memory Addressing : 64-Bit, Supporting Greater Than 4gb Server Memory Space
Raid Support : Raid 0, Raid 1, Raid 5, Raid 10, Greater 50
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Processor : No Graphics
NETWORK & COMMUNICATION :
Networking Type : Integrated
Interface (Bus) Type : Pci Express X2
Ethernet Ports : 2 X Gigabit Ethernet
thernet Controller : Hp 330i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DESCRIPTION :
Device Type : Power Supply
Installed Qty : 0
Max Supported Qty : 2
