GENERAL INFORMATION :
Manufacturer: Hewlett Packard
Manufacturer Part Number: 776977-S01

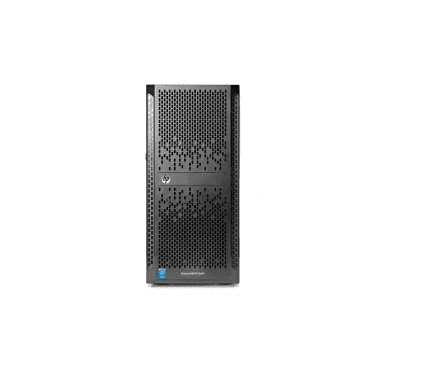

Product Name: Proliant Ml350 Gen9 5u-Tower Server (Smart Buy)
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2620v3/2.4GHz
Multi-Core Technology : Hexa-Core (6 Core)
64 Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Model : Intel C610
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 15 Mb
Cache Per Processor : 15 Mb
MEMORY :
Installed Size: 8gb/384gb (Max)
Technology: Ddr4 Sdram – Advanced Ecc
Memory Speed: 1866 Mhz
Memory Specifications Compliance: Pc4-17000
Form Factor: Dimm 288-Pin
Memory Slots: 24 x DDR4 RAM Slots
Features: Registered, Online Spare Memory, Quad Channel Memory Architecture, Hp Smart Memory
RAM SUPPORTED:
PC4-17000 – 768 GB – Load-Reduced
PC4-17000 – 384 GB – Registered
STORAGE & STORAGE CONTROLLER :
Hard Drive : No Hdd
Optical Storage Type : Dvd-Rom – Sata
Storage Controller Type : 1 X Raid – Plug-In Card – Pci Express 3.0 X8
Controller Interface Type : Sata-600 / Sas 3.0
Storage Controller Name : Smart Array P440ar With 2gb Fbwc
Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb
DISPLAY & GRAPHICS :
Graphics Type : Integrated
Graphics Controller Model : Matrox G200
Video Interfaces : VGA
NETWORK & COMMUNICATION :
Networking Type : Integrated
Ethernet Ports : 4x Gigabit Ethernet
Ethernet Controller : Hp 331i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DESCRIPTION :
Device Type: Power Supply Hot Plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1(With Optional Power Supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: Ac 120/220 V ( 50/60 Hz )
Power Provided: 500 Watt
80 Plus Certification : 80 Plus Platinum
